WeidmüllerGermany

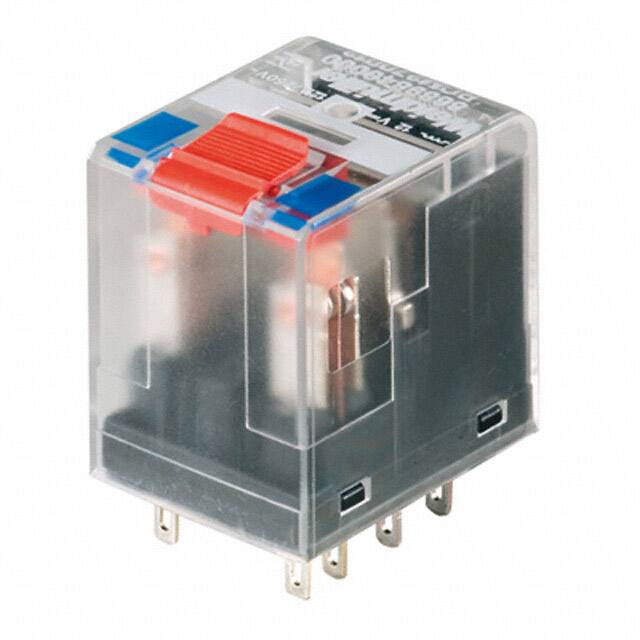

RELAY GEN PURPOSE 4PDT 6A 6V
All alternatives
View full reportTechnical parameters
Key specs
Coil voltage6 V
Contact form4PDT
Contact current6 AMax
Switching voltage240 VMax
| Power | |
|---|---|
| Coil Current | 125 mA |
| Coil Voltage | 6VDC |
| Contact Rating (Current) | 6 A |
| Must Operate Voltage | 4.5 VDC |
| Must Release Voltage | 0.6 VDC |
| Switching Voltage | 240VAC - Max |
| Environment and package | |
| Mounting Type | Socketable |
| Operating Temperature | -40°C~70°C |
| Package | Bulk |
| Other | |
| Coil Insulation | - |
| Coil Resistance | 48 Ohms |
| Coil Type | Non Latching |
| Contact Form | 4PDT (4 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Features | Test Button |
| Mfr | Weidmüller |
| Operate Time | 15 ms |
| Product Status | Active |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Seal Rating | - |
| Series | RCM |
| Termination Style | Plug In, Quick Connect - 0.110" (2.8mm) |
Documents
No documents are linked to this part yet.
