80716300440
Littelfuse Inc.United States

80716300440

ActiveFuses

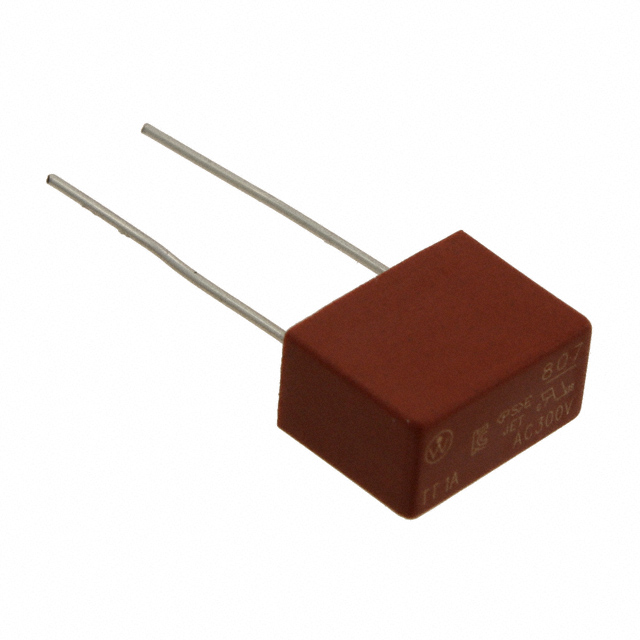

FUSE BOARD MNT 6.3A 300VAC RAD

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Rated current6.3 A
Rated voltage300 V
Response timeSlow
Breaking capacity100 A
Power
Breaking Capacity @ Rated Voltage100A
Current Rating (Amps)6.3 A
Voltage Rating - AC300 V
Environment and package
Mounting TypeThrough Hole
Operating Temperature-40°C ~ 125°C
PackageBulk
Package / CaseRadial, Box
Size / Dimension0.488" L x 0.252" W x 0.362" H (12.40mm x 6.40mm x 9.20mm)
Other
Approval AgencycULus, KC, PSE/JET
Color-
DC Cold Resistance0.01 Ohms
Fuse TypeBoard Mount (Cartridge Style Excluded)
Melting I²t1063.2
MfrLittelfuse Inc.
Product StatusActive
Response TimeSlow Blow
SeriesTE7 807
