TE ConnectivitySwitzerland

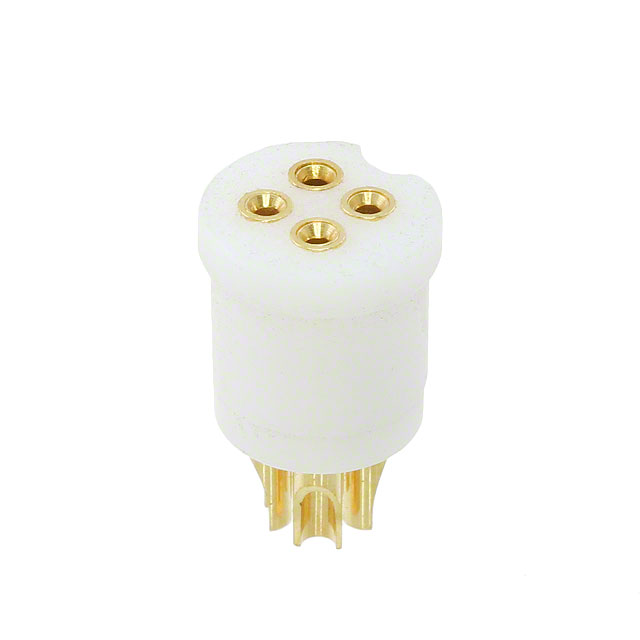

CONN TRANSIST TO-5 4POS GOLD
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Mounting Type | Panel Mount |
| Operating Temperature | -55°C ~ 125°C |
| Package | Bulk |
| Other | |
| Base Product Number | 8060 |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish Thickness - Post | - |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post | Beryllium Copper |
| Contact Resistance | - |
| Features | Closed Frame |
| Housing Material | Fluoropolymer (FP) |
| Material Flammability Rating | - |
| Mfr | TE Connectivity AMP Connectors |
| Number of Positions or Pins (Grid) | 4 (Round) |
| Pitch - Mating | - |
| Pitch - Post | - |
| Product Status | Obsolete |
| Series | 8060 |
| Termination | Solder |
| Termination Post Length | - |
| Type | Transistor, TO-5 |
Documents
No documents are linked to this part yet.
