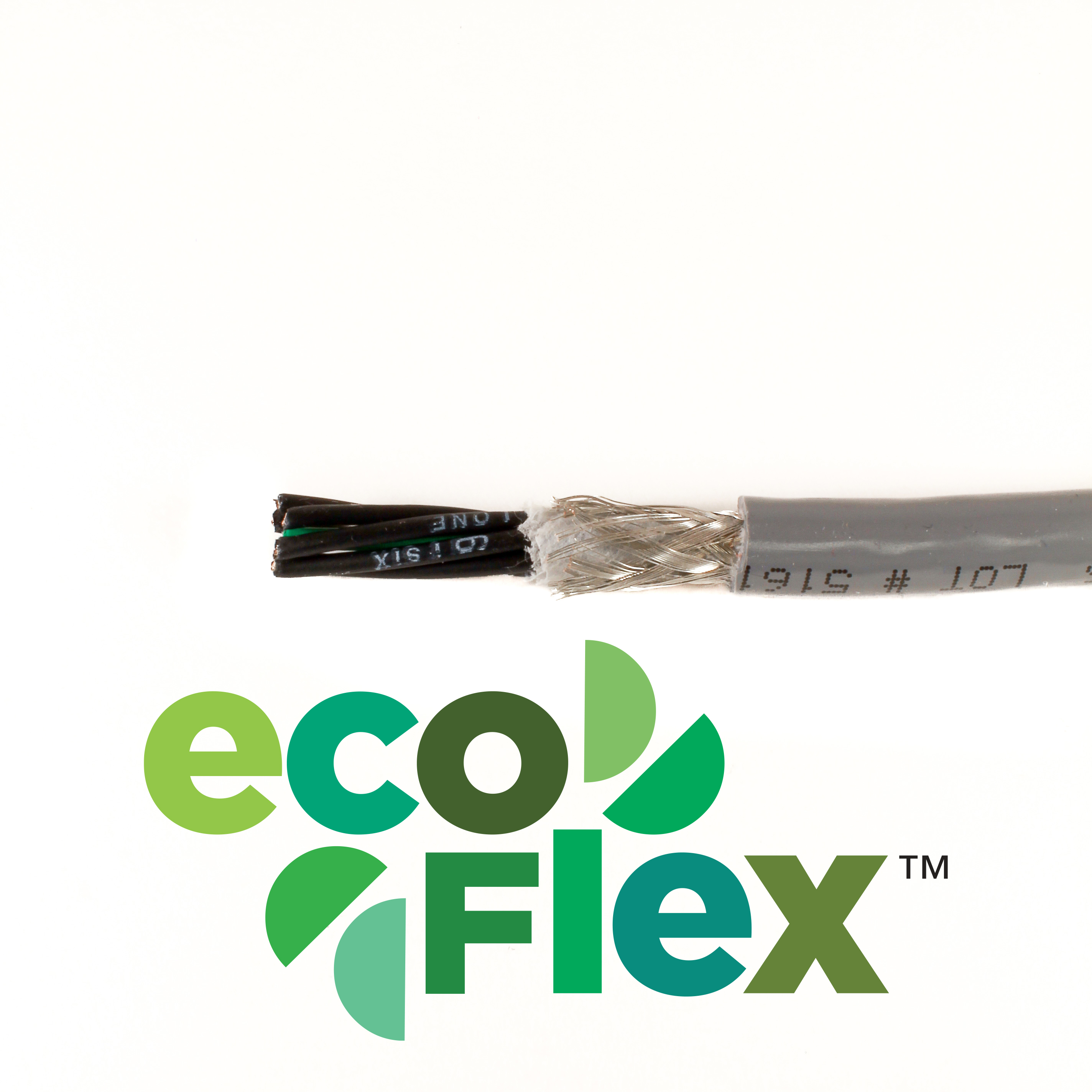

Active20 AWG 25 Conductor 600V EcoFlex PUR is a continuous flex cable that is smaller, lighter and contains zero halogens compared to standard 600V PVC cable
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| 1) Voltage Rating | 600 V RMS |
| Environment and package | |
| 1) Temperature Range | -50 to 90°C(static), -40 to 80°C (dynamic) |
| Other | |
| 1) Component 1 | 30 X 1 COND |
| (1) Print | ALPHANUMERIC NUMBERS - 1-ONE ALTERNATING AND INVERTED |
| 1) UL | a) Component 1 |
| 2) Bend Radius | 4X Cable Diameter(static), 6X Cable Diameter(dynamic) |
| 2) Cable Assembly | 30 Components Cabled |
| 2) Capacitance | 32 pF/ft @1 kHz, Nominal Conductor to Conductor |
| (2) Color Code | Alpha Wire Color Code KX |
| 3) Ground Capacitance | 58 pF/ft @1 kHz, Nominal |
| 3) Pull Tension | 252 Lbs, Maximum |
| 3) Shield | Tinned Copper BRAID Shield,85% Coverage, Min. |
| 4) Inductance | 0.17 μH/ft, Nominal |
| 4) Other | NFPA 79 - 2015 Compliant |
| 4) Sunlight Resistance | Yes |
| 5) CE | EU Low Voltage Directive 2014/35/EU |
| 5) Conductor DCR | 11.3 Ω/1000ft @20°C, Nominal |
| 6) OA Shield DCR | 2.8 Ω/1000ft @20°C, Nominal |
| a) 100 FT | 12 x 5.94 x 5 Continuous length |
| a) Color(s) | SLATE |
| a) Component 1 | EN 60228 Conductors, Class 6 |
| a) Twists | 2.8 Twists/foot (min) |
| b) Jacket Separator | Tissue Tape, 25% Overlap, Min. |
| b) Orientation | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER |
| b) Overall | EN 60754-1 Acid Gas Generation |
| c) Core Wrap | Nonwoven Polyester Tape, 25% Overlap, Min. |
| Color | GREEN/YELLOW |
| Cond | 1 |
| c) Print | ALPHA WIRE-* P/N 80130 30C 20 AWG RU AWM STYLE 21959 90C 600V SUN RES 60C OIL OR CRU AWM I/II A/B 90C 600V FT2 --- IEC EN 60332-1/2 CE ROHS (SEQ FOOTAGE) * = Factory Code |
| Electrical Properties | (For Engineering purposes only) |
| Packaging | Flange x Traverse x Barrel (inches) |
