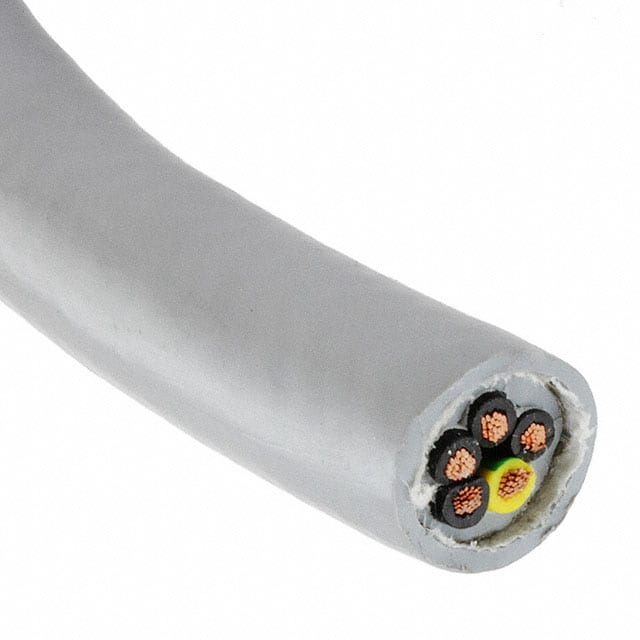

ECOFLEX PUR 5CON 24AWG BRAID
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage | 600 V |
| Environment and package | |
| Operating Temperature | -50°C~90°C |
| Package | Spool |
| Other | |
| Base Product Number | 80110 |
| Cable Type | Multi-Conductor |
| Conductor Insulation | Polyphenylene Ether (PPE) |
| Conductor Material | Copper, Tinned |
| Conductor Strand | 19/36 |
| Features | - |
| Jacket Color | Slate |
| Jacket (Insulation) Diameter | 0.218" (5.54mm) |
| Jacket (Insulation) Material | Polyurethane (PU) |
| Jacket (Insulation) Thickness | 0.0319" (0.810mm) |
| Length | 100.0' (30.5m) |
| Mfr | Alpha Wire |
| Number of Conductors | 5 |
| Product Status | Active |
| Ratings | - |
| Series | EcoFlex® PUR |
| Shield Coverage | 85% |
| Shield Material | Copper, Tinned |
| Shield Type | Braid |
| Usage | - |
| Wire Gauge | 24 AWG |
