Laird Thermal Systems, Inc.United States

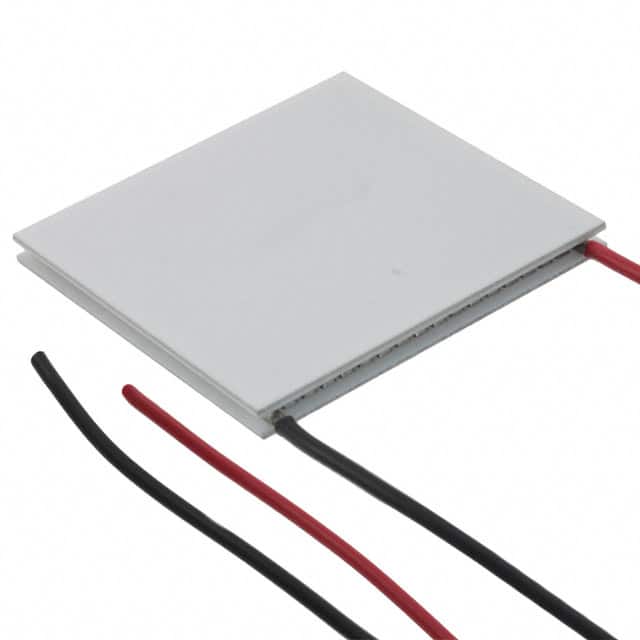

PELTIER MOD ZT7,16,F1,4040,TA,W8
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Max | 6.7 A |
| Voltage - Max | 20 V |
| Environment and package | |
| Height | 3.30mm |
| Operating Temperature | 80°C |
| Package | Bulk |
| Size / Dimension | Square - 40.00mm L x 40.00mm W |
| Other | |
| Base Product Number | 7945001 |
| Delta Tmax @ Th | 72°C @ 25°C |
| Features | Lead Wires, Non-Sealed |
| Mfr | Laird Thermal Systems, Inc. |
| Number of Stages | 1 |
| Product Status | Active |
| Qmax @ Th | 83.9W @ 25°C |
| Resistance | 2.53 Ohms |
| Series | ZT |
