APEM Inc.France

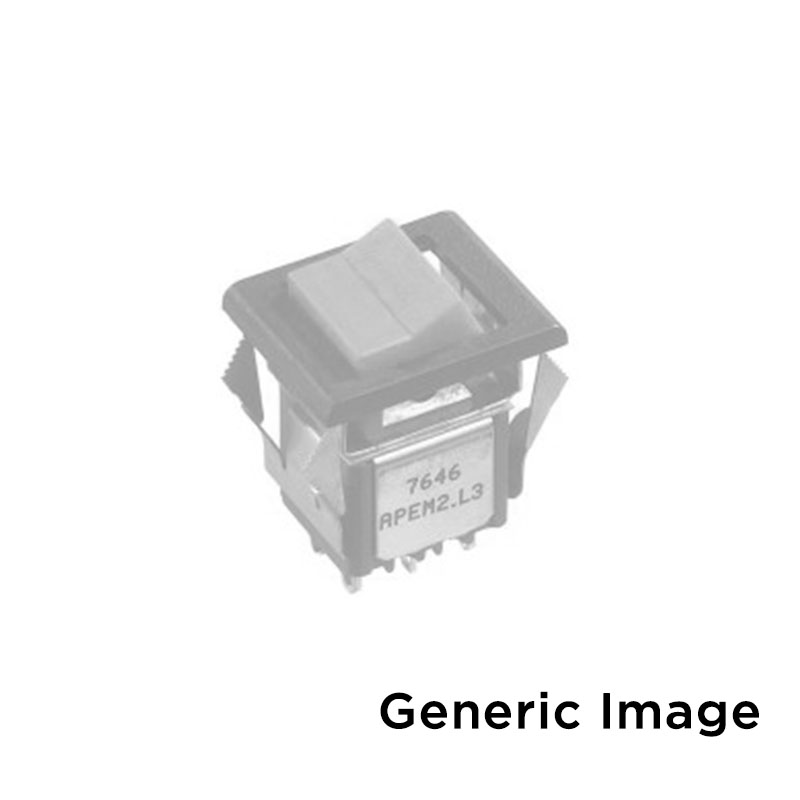

The 7934NCT2RADULU700 Panel Switch offers reliable single pole performance for PCB applications, featuring multiple ON and MOM functions for enhanced control in electronic devices.
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Operating temperature | -40 °C to +85 °C |
| Terminals mounting | Mounting with Small Plate |
| Other | |
| Actuators | Broad |
| Connections | Reversed |
| Electrical Functions | ON ON ON ON ON MOM MOM ON MOM |
| Electrical life | 50.000 cycles at full load |
| Low level or mechanical life | 100,000 cycles |
| Momentary | MOM ON MOM |
| Number Of Poles | Single Pole |
| Panel thickness | 1 (.039) to 2.5 mm(.098) |
| Sealing | Unsealed |
| Terminals | Straight PC or Quick Connect Terminals |
