Alpha WireUnited States
79050

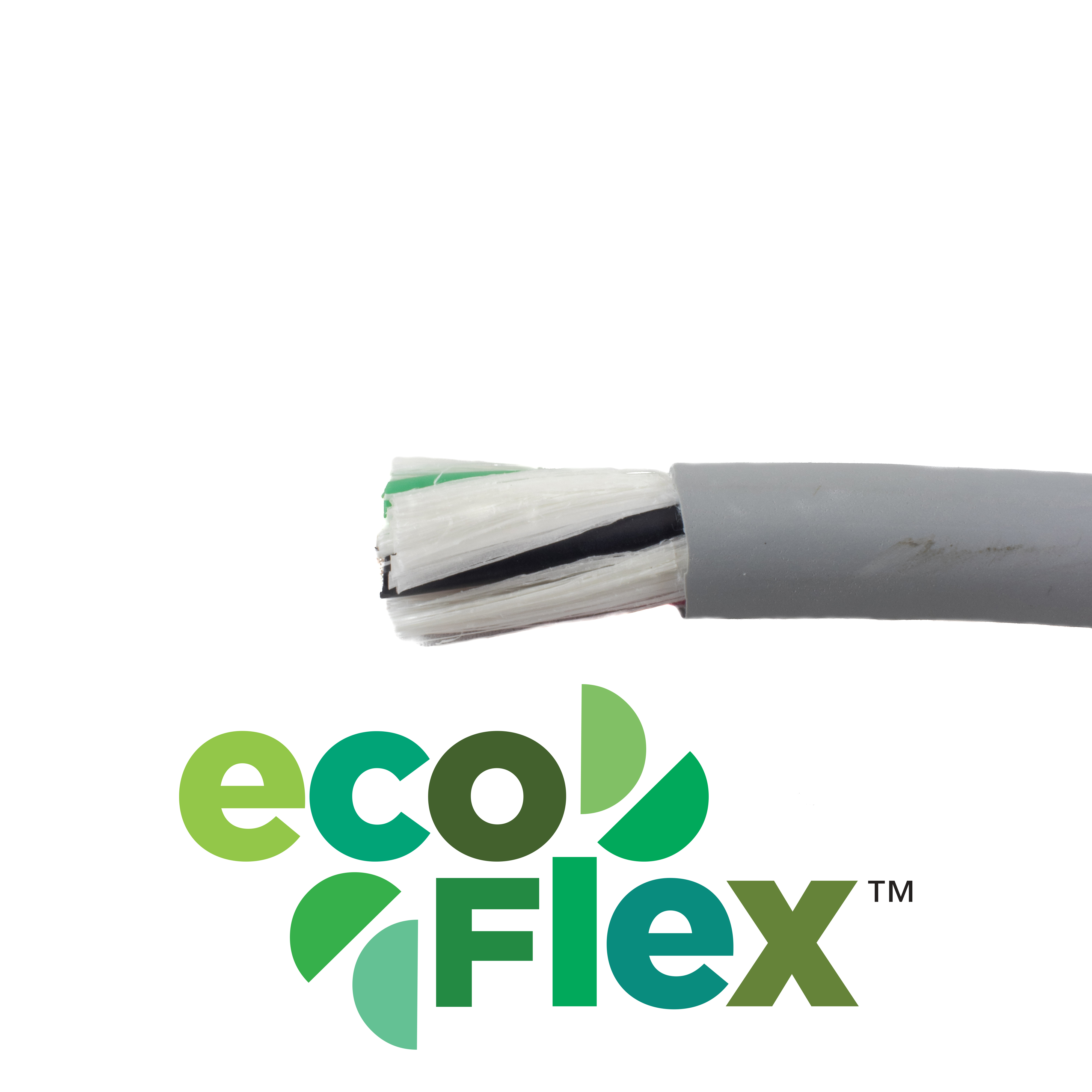

Active24 AWG 2 Conductor Unshielded EcoFlex is a Flexible Control Cable that is smaller lighter and halogen free compared to PVC Control Cable
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| 1) Voltage Rating | 600 V RMS |
| AC and DC characteristics | |
| 3) Characteristic Impedance | 93 Ω |
| Environment and package | |
| 1) Temperature Range | -40 to 105°C(static), -5 to 105°C (dynamic) |
| Other | |
| 105°C / 600 V RMS | 80°C / 300 V RMS |
| (1) Color Code | Alpha Wire Color Code D |
| 1) Component 1 | 2 X 1 COND |
| 2) Bend Radius | 5X Cable Diameter(static), 5X Cable Diameter(dynamic) |
| 2) Cable Assembly | 2 Components Cabled |
| 2) Capacitance | 17.1 pF/ft @1 kHz, Nominal Conductor to Conductor |
| 2) CSA International | C(RU) AWM I/II A/B FT1 |
| 3) California Proposition 65 | This product may contain substances known to the State of California to cause Cancer or Reproductive Harm, but is exempt from labeling based on the Consent Judgement. See the Alpha Wire website for more information. |
| 3) Other | Halogen-Free |
| 3) Pull Tension | 7.5 Lbs, Maximum |
| 4) CE | EU Low Voltage Directive 2014/35/EU |
| 4) Inductance | 0.18 μH/ft, Nominal |
| 5) Conductor DCR | 24.1 Ω/1000ft @20°C, Nominal |
| a) 1000 FT | 12 x 5.94 x 5 Continuous length |
| a) Color(s) | SLATE |
| a) Twists | 12.0 Twists/foot (min) |
| AWM/STYLE 21492 | 80°C / 300 V RMS |
| AWM/STYLE 21819 | AWM/STYLE 21492 |
| b) 100 FT | 6.5 x 2 x 1.9 Continuous length |
| b) Orientation | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER |
| b) Print | ALPHA WIRE-* P/N 79050 2C 24 AWG ECOFLEX(TM) RU AWM 21819 105C 600V OR 21492 80C 300V VW-1 C(RU) AWM I/II A/B FT1 600V 105C CE ROHS (SEQ FOOTAGE) * = Factory Code |
| c) Core Wrap | Nonwoven Polyester Tape, 25% Overlap, Min. |
| Color | BLACK |
| Cond | 1 |
| Electrical Properties | (For Engineering purposes only) |
| Packaging | Flange x Traverse x Barrel (inches) |
