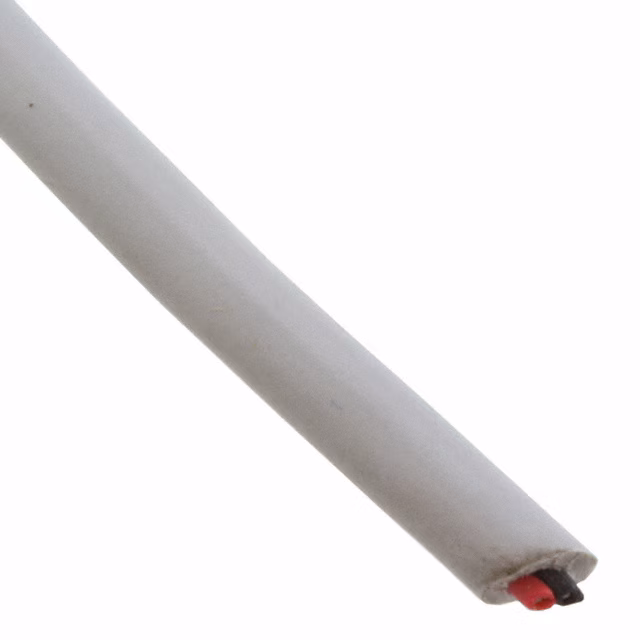

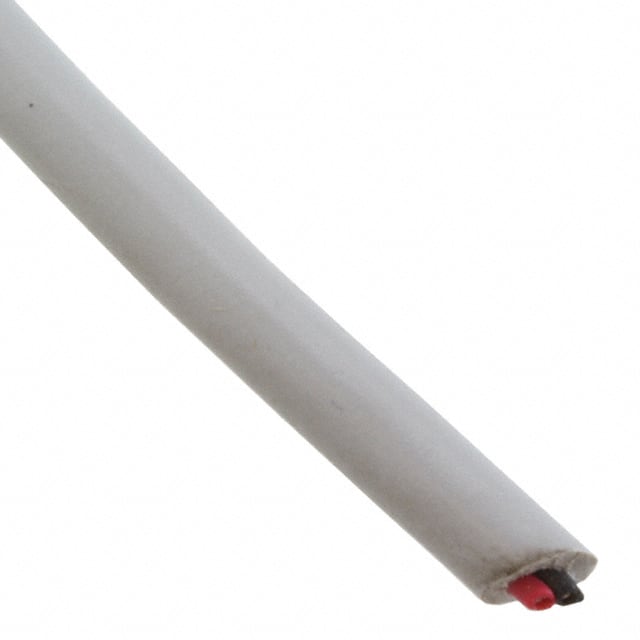

CABLE 2COND 14AWG SLATE 1000'
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage | 600 V |
| Environment and package | |
| Operating Temperature | -40°C~105°C |
| Package | Spool |
| Other | |
| Base Product Number | 79028 |
| Cable Type | Multi-Conductor |
| Conductor Insulation | Polyphenylene Ether, Modified (mPPE) |
| Conductor Material | Copper, Tinned |
| Conductor Strand | 41/30 |
| Features | Biological Compatibility |
| Jacket Color | Slate |
| Jacket (Insulation) Diameter | 0.266" (6.76mm) |
| Jacket (Insulation) Material | Polyphenylene Ether, Modified (mPPE) |
| Jacket (Insulation) Thickness | 0.0350" (0.889mm) |
| Length | 1000.0' (304.8m) |
| Mfr | Alpha Wire |
| Number of Conductors | 2 |
| Product Status | Active |
| Ratings | ISO 10993 |
| Series | EcoFlex® |
| Shield Coverage | - |
| Shield Material | - |
| Shield Type | - |
| Usage | - |
| Wire Gauge | 14 AWG |
