Grayhill Inc.United States

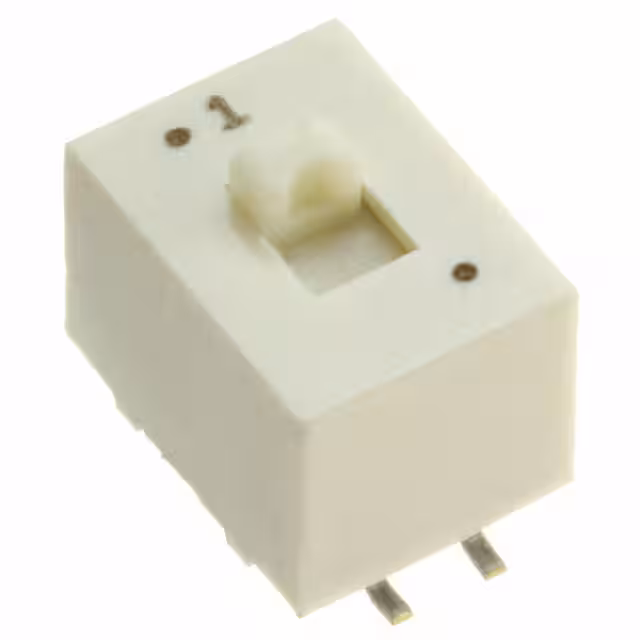

SWITCH SLIDE DIP SPDT 150MA 30V
All alternatives
View full reportTechnical parameters
Key specs
CircuitSPDT
Current rating150 mAMax
| Power | |
|---|---|
| Current Rating (Amps) | 150mA |
| Voltage Rating | 30VDC |
| Environment and package | |
| Height Above Board | 0.327" (8.30mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tube |
| Other | |
| Actuator Level | Raised |
| Actuator Type | Slide (Standard) |
| Base Product Number | 78HJ01 |
| Body Material | Thermoplastic |
| Circuit | SPDT |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Electrical Life | 2,000 Cycles |
| Features | - |
| Length | 0.280" (7.11mm) |
| Mechanical Life | 2,000 Cycles |
| Mfr | Grayhill Inc. |
| Number of Positions | 1 |
| Pitch | 0.100" (2.54mm), Full |
| Product Status | Active |
| Series | 78H |
| Termination Style | Gull Wing |
| Washable | No |
