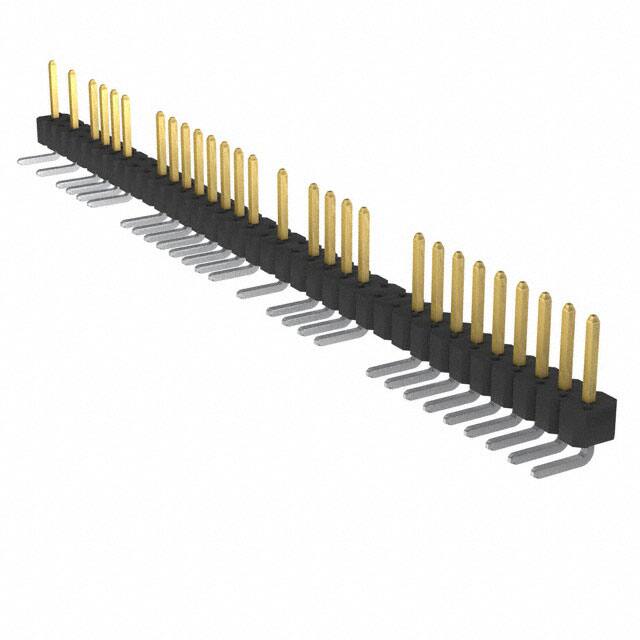

CONN HEADER R/A 36POS 2.54MM
All alternatives
View full reportTechnical parameters
Key specs
Positions36
Rows1
Pitch2.54 mm
GenderMale
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Environment and package | |
| Insulation Height | 0.094" (2.40mm) |
| Mated Stacking Heights | - |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature | - |
| Package | Bulk |
| Other | |
| Applications | - |
| Base Product Number | 77316 |
| Connector Type | Header, Breakaway |
| Contact Finish - Mating | Gold or Gold, GXT™ |
| Contact Finish - Post | - |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish Thickness - Post | - |
| Contact Length - Mating | 0.225" (5.72mm) |
| Contact Length - Post | 0.101" (2.57mm) |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | - |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Amphenol ICC (FCI) |
| Number of Positions | 36 |
| Number of Positions Loaded | 28 |
| Number of Rows | 1 |
| Overall Contact Length | - |
| Pitch - Mating | 0.100" (2.54mm) |
| Product Status | Obsolete |
| Row Spacing - Mating | - |
| Series | BERGSTIK® |
| Shrouding | Unshrouded |
| Style | Board to Board |
| Termination | Solder |
