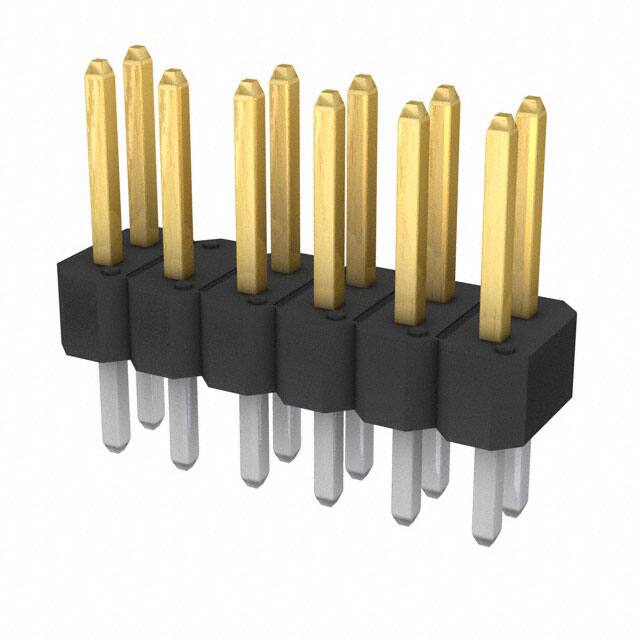

CONN HEADER VERT 12POS 2.54MM
All alternatives
View full reportTechnical parameters
Key specs
Positions12
Rows2
Pitch2.54 mm
GenderMale
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Environment and package | |
| Insulation Height | 0.100" (2.54mm) |
| Mated Stacking Heights | - |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Package | Bulk |
| Other | |
| Applications | - |
| Base Product Number | 77314 |
| Connector Type | Header, Breakaway |
| Contact Finish - Mating | Gold, GXT™ |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish Thickness - Post | 157.5µin (4.00µm) |
| Contact Length - Mating | 0.230" (5.84mm) |
| Contact Length - Post | 0.135" (3.43mm) |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | - |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Amphenol ICC (FCI) |
| Number of Positions | 12 |
| Number of Positions Loaded | 11 |
| Number of Rows | 2 |
| Overall Contact Length | 0.465" (11.81mm) |
| Pitch - Mating | 0.100" (2.54mm) |
| Product Status | Obsolete |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Series | BERGSTIK® |
| Shrouding | Unshrouded |
| Style | Board to Board or Cable |
| Termination | Solder |
