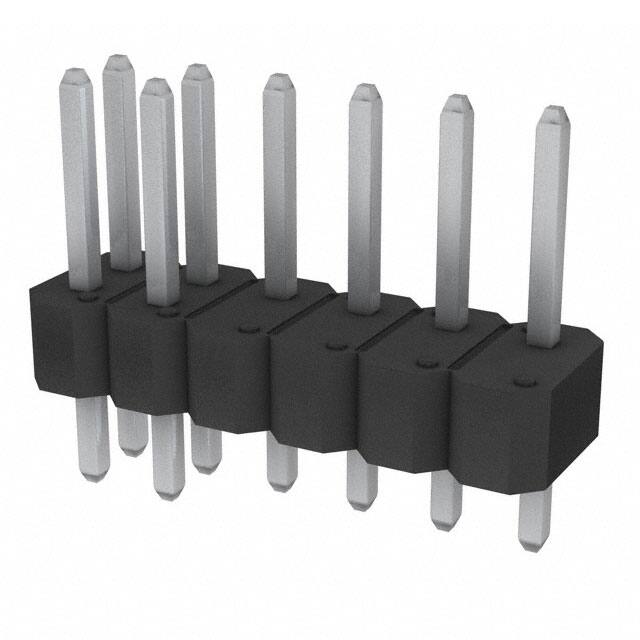

CONN HEADER VERT 12POS 2.54MM
All alternatives
View full reportTechnical parameters
Key specs
Positions12
Rows2
Pitch2.54 mm
GenderMale
Current rating3 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 3A |
| Voltage Rating | - |
| Environment and package | |
| Insulation Height | 0.100" (2.54mm) |
| Mated Stacking Heights | - |
| Mounting Type | Through Hole |
| Operating Temperature | -65°C~130°C |
| Package | Bulk |
| Other | |
| Applications | - |
| Base Product Number | 77314 |
| Connector Type | Header, Breakaway |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 78.7µin (2.00µm) |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Length - Mating | 0.224" (5.70mm) |
| Contact Length - Post | 0.115" (2.92mm) |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | - |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Amphenol ICC (FCI) |
| Number of Positions | 12 |
| Number of Positions Loaded | 8 |
| Number of Rows | 2 |
| Overall Contact Length | 0.440" (11.18mm) |
| Pitch - Mating | 0.100" (2.54mm) |
| Product Status | Active |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Series | BERGSTIK® |
| Shrouding | Unshrouded |
| Style | Board to Board or Cable |
| Termination | Solder |
