Alpha WireUnited States

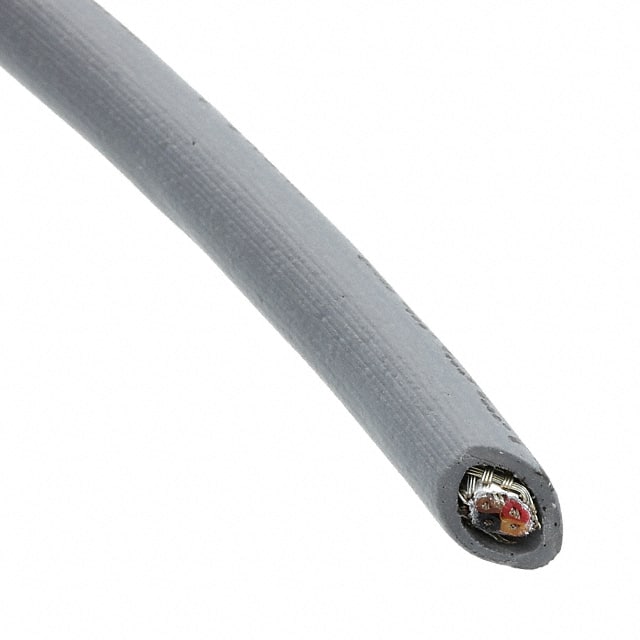

CABLE 4COND 28AWG SHLD 100'
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage | 600 V |
| Environment and package | |
| Operating Temperature | -50°C~105°C |
| Package | Spool |
| Other | |
| Base Product Number | 77254 |
| Cable Type | Multi-Conductor |
| Conductor Insulation | Polyphenylene Ether, Modified (mPPE) |
| Conductor Material | Copper, Tinned |
| Conductor Strand | 7/36 |
| Features | Biological Compatibility, Drain Wire, Rip Cord |
| Jacket Color | Slate |
| Jacket (Insulation) Diameter | 0.181" (4.60mm) |
| Jacket (Insulation) Material | Polyphenylene Ether, Modified (mPPE) |
| Jacket (Insulation) Thickness | 0.0320" (0.813mm) |
| Length | 100.0' (30.5m) |
| Mfr | Alpha Wire |
| Number of Conductors | 4 |
| Product Status | Active |
| Ratings | ISO 10993, UL Style 21915 |
| Series | EcoCable® |
| Shield Coverage | 100%, 70% |
| Shield Material | Aluminum; Copper, Tinned |
| Shield Type | Foil, Braid |
| Usage | - |
| Wire Gauge | 28 AWG |
