Alpha WireUnited States
77253

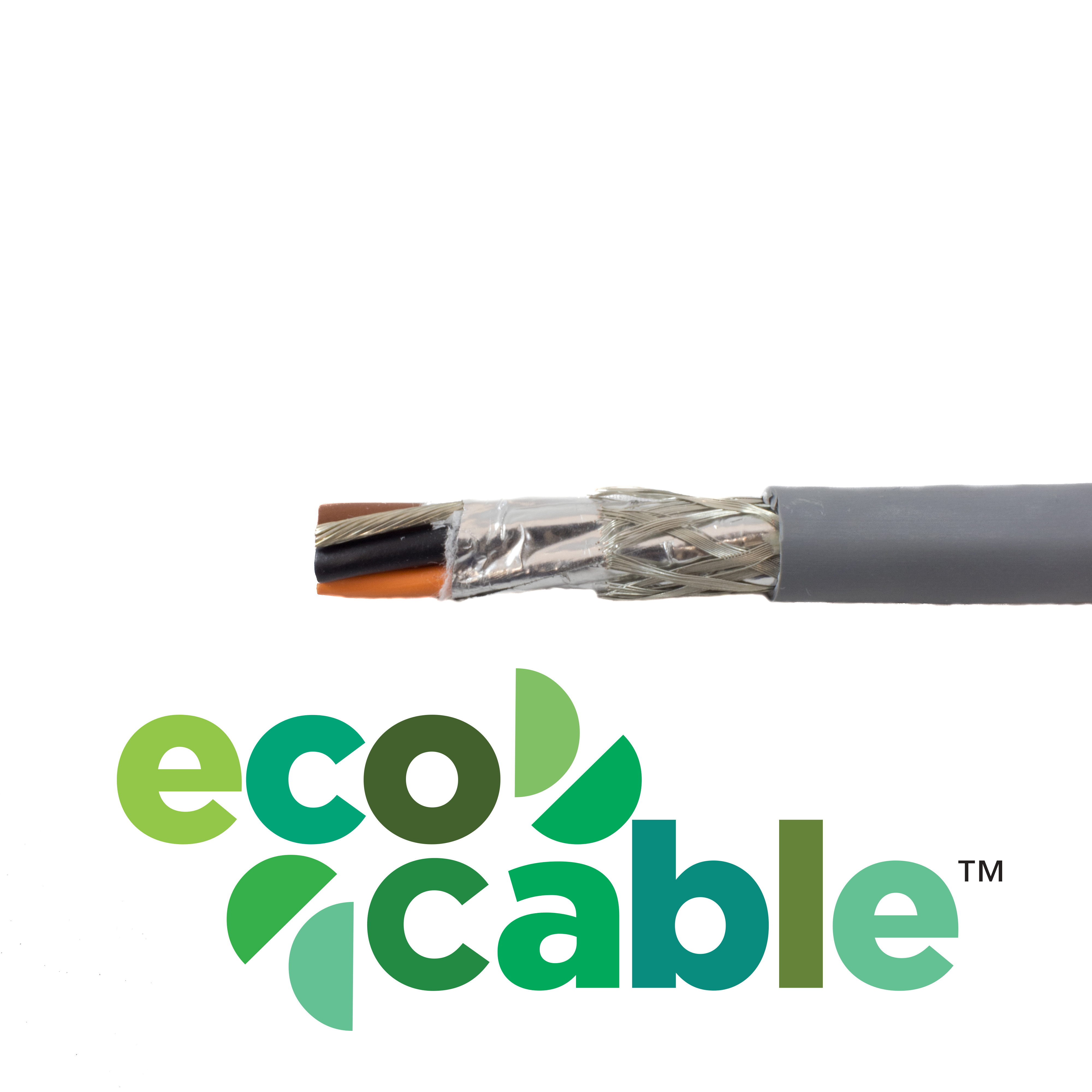

Active28 AWG 3 Conductor Foil/Braid Shielded EcoCable is a Control Cable that is smaller lighter and halogen free compared to PVC Control Cable
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| 1) Voltage Rating | 600 V RMS |
| Environment and package | |
| 1) Temperature Range | -50 to 105°C |
| Other | |
| (1) Color Code | Alpha Wire Color Code E |
| 1) Component 1 | 3 X 1 COND |
| 1) UL | a) Component 1 |
| 2) Bend Radius | 6X Cable Diameter |
| 2) Cable Assembly | 3 Components Cabled |
| 2) Capacitance | 17.5 pF/ft @1 kHz, Nominal Conductor to Conductor |
| 3) California Proposition 65 | This product may contain substances known to the State of California to cause Cancer or Reproductive Harm, but is exempt from labeling based on the Consent Judgement. See the Alpha Wire website for more information. |
| 3) Ground Capacitance | 32 pF/ft @1 kHz, Nominal |
| 3) Other | Halogen-Free |
| 3) Pull Tension | 7.5 Lbs, Maximum |
| 3) Shield | A/P/A Tape, 25% Overlap, Min. |
| 4) CE | EU Low Voltage Directive 2014/35/EU |
| 4) Inductance | 0.22 μH/ft, Nominal |
| 5) Conductor DCR | 66 Ω/1000ft @20°C, Nominal |
| 6) OA Shield DCR | 8 Ω/1000ft @20°C, Nominal |
| a) 1000 FT | 12 x 5.94 x 5 Continuous length |
| a) Color(s) | SLATE |
| a) Drain Wire | 28 (7/36) AWG Tinned Copper |
| a) Twists | 13.7 Twists/foot (min) |
| b) 100 FT | 6.5 x 2 x 1.9 Continuous length |
| b) Braid | Tinned Copper,70% Coverage, Min. |
| b) Orientation | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER |
| b) Ripcord | 1 End 810 Denier Nylon |
| c) Core Wrap | Nonwoven Polyester Tape, 25% Overlap, Min. |
| Color | BLACK |
| Cond | 1 |
| c) Print | ALPHA WIRE-* P/N 77253 3C 28 AWG ECOCABLE(R) RU AWM 21915 105C 600V C(RU) AWM I/II A/B FT2 600V 105C CE ROHS (SEQ FOOTAGE) * = Factory Code |
| Electrical Properties | (For Engineering purposes only) |
| Packaging | Flange x Traverse x Barrel (inches) |
