IskraSlovenia

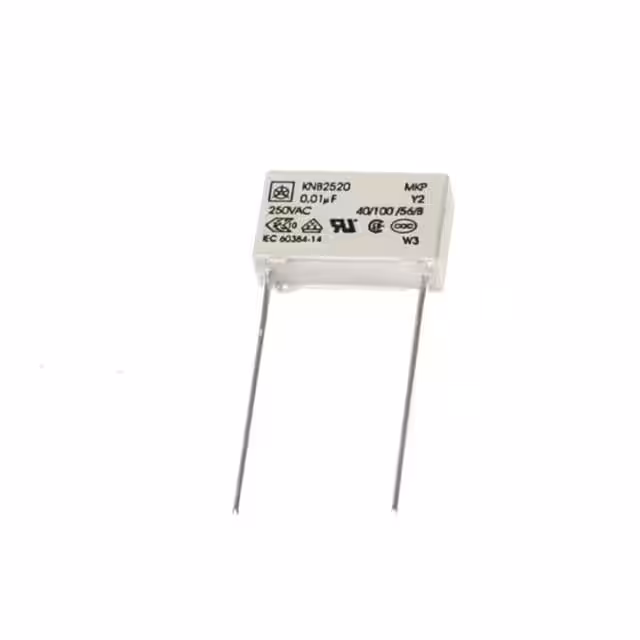

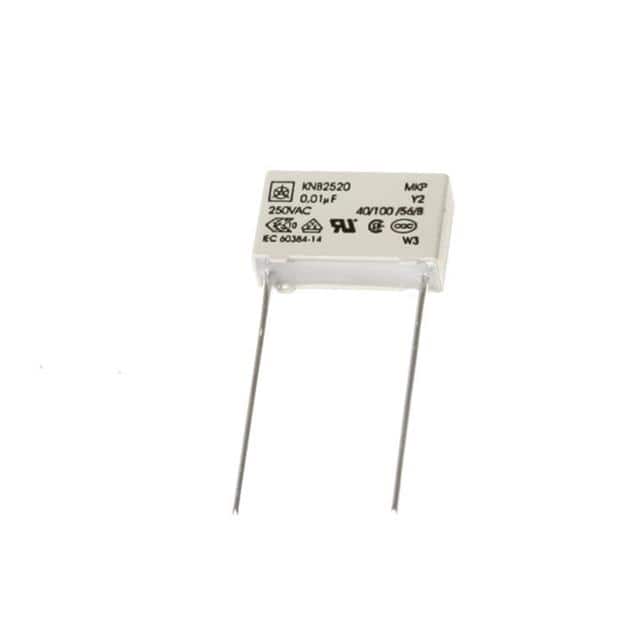

KNB2520 6800P 20% 250V L25 R10
All alternatives
View full reportTechnical parameters
Key specs
Capacitance6.8 nF
Rated voltage560 V
Tolerance20 %
| Power | |
|---|---|
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | 560V |
| Environment and package | |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~100°C |
| Package | Bulk |
| Package / Case | Radial |
| Other | |
| Applications | General Purpose |
| Capacitance | 6800 pF |
| Dielectric Material | Polypropylene (PP), Metallized |
| Lead Spacing | 0.394" (10.00mm) |
| Mfr | Iskra |
| Product Status | Active |
| Series | KNB2520 |
| Termination | PC Pins |
| Tolerance | ±20% |
