TE ConnectivitySwitzerland

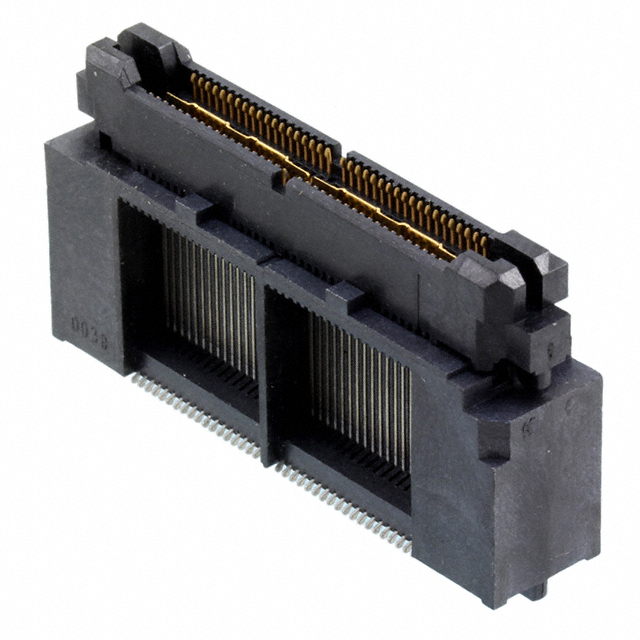

CONN PLUG 76POS SMD GOLD
All alternatives
View full reportTechnical parameters
Key specs
Positions76
Rows2
Pitch640 µm
GenderMale
| Environment and package | |
|---|---|
| Height Above Board | 0.780" (19.81mm) |
| Mated Stacking Heights | 20mm, 29mm |
| Mounting Type | Surface Mount |
| Package | Tube |
| Other | |
| Base Product Number | 767032 |
| Connector Type | Plug, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Features | Board Guide, Ground Bus (Plane) |
| Mfr | TE Connectivity AMP Connectors |
| Number of Positions | 76 |
| Number of Rows | 2 |
| Pitch | 0.025" (0.64mm) |
| Product Status | Active |
| Series | MICTOR |
