Switchcraft Inc.United States

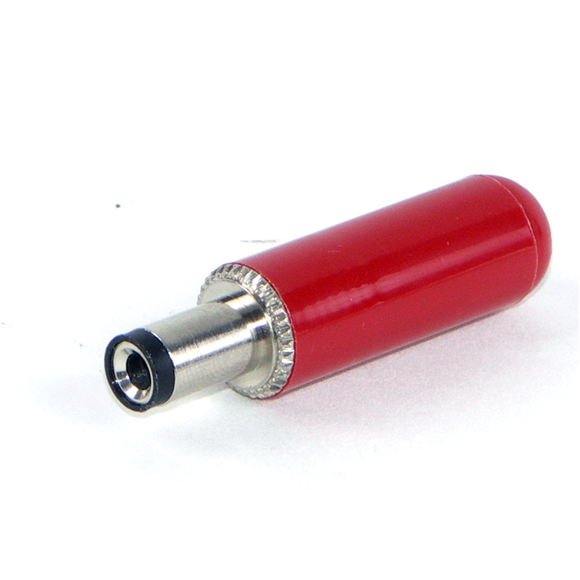

CONN PWR PLUG 2.5X5.5MM SOLDER
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 5 A |
| Voltage - Rated | - |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | - |
| Package | Bulk |
| Thread Size | - |
| Other | |
| Actual Diameter | 0.098" (2.50mm ID), 0.217" (5.50mm OD) |
| Base Product Number | - |
| Body Color | Silver, Red |
| Body Material | Copper Alloy |
| Connector Type | Plug |
| Contact Material | Copper Alloy |
| Contact Material - Plating | Tin |
| Features | - |
| Gender | Female |
| Housing Material | Thermoplastic |
| Includes | 2 pcs - 1 Connector, 1 Handle |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
| Ingress Protection | - |
| Insulation Color | Black |
| Internal Switch(s) | Does Not Contain Switch |
| Material Flammability Rating | - |
| Mating Length/Depth | 0.374" (9.50mm) |
| Mfr | Switchcraft Inc. |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Product Status | Active |
| Series | - |
| Shielding | Unshielded |
| Termination | Solder Eyelet(s) |
