Würth ElektronikGermany

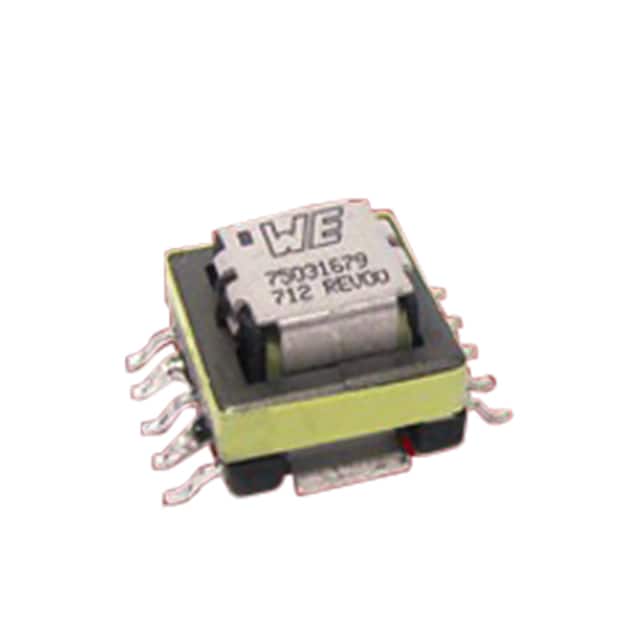

CURRENT SENSE TRANSFORMER
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 40 A |
| Current Ratio | - |
| AC and DC characteristics | |
| Frequency Range | 50kHz ~ 500kHz |
| Environment and package | |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Mounting Type | Surface Mount |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Size / Dimension | 0.570" L x 0.795" W (14.48mm x 20.20mm) |
| Other | |
| DC Resistance (DCR) | 280mOhm |
| ET (Volt-Time) | - |
| Inductance | 1.4 mH |
| Mfr | Würth Elektronik |
| Product Status | Obsolete |
| Ratings | - |
| Series | - |
| Termination Style | Gull Wing |
| Turns Ratio - Primary:Secondary | 1:50 |
| Type | Invasive |
| Weight | - |
Documents
No documents are linked to this part yet.
