onsemiUnited States

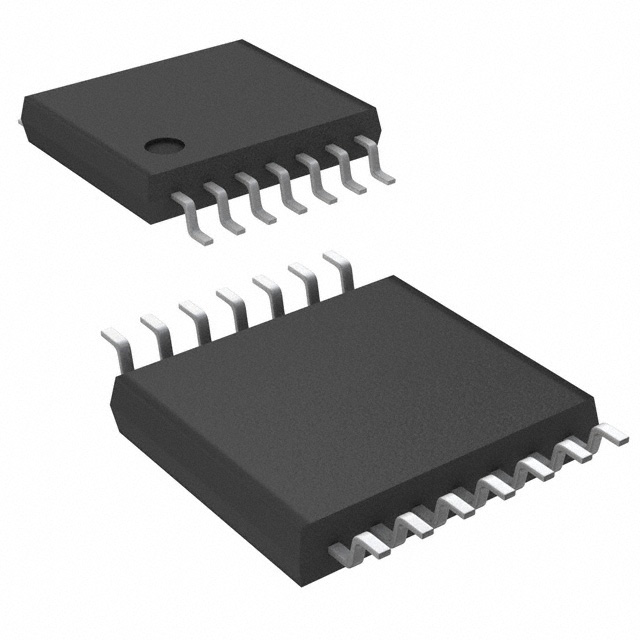

IC INVERTER 6CH 1-INP 14TSSOP
All alternatives
View full reportTechnical parameters
Key specs
Logic typeInverter
Elements6
Inputs1
Supply voltage2 ~ 5.5 V
Propagation delay10.6 nsMax · 5V
| Power | |
|---|---|
| Current - Output High, Low | 8mA, 8mA |
| Current - Quiescent (Max) | 2 µA |
| Voltage - Supply | 2V ~ 5.5V |
| AC and DC characteristics | |
| Max Propagation Delay @ V, Max CL | 10.6ns @ 5V, 50pF |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP |
| Other | |
| Base Product Number | 74VHC14 |
| Features | Schmitt Trigger |
| Input Logic Level - High | 2.2V ~ 3.85V |
| Input Logic Level - Low | 0.9V ~ 1.65V |
| Logic Type | Inverter |
| Mfr | onsemi |
| Number of Circuits | 6 |
| Number of Inputs | 1 |
| Product Status | Active |
| Series | 74VHC |
