onsemiUnited States

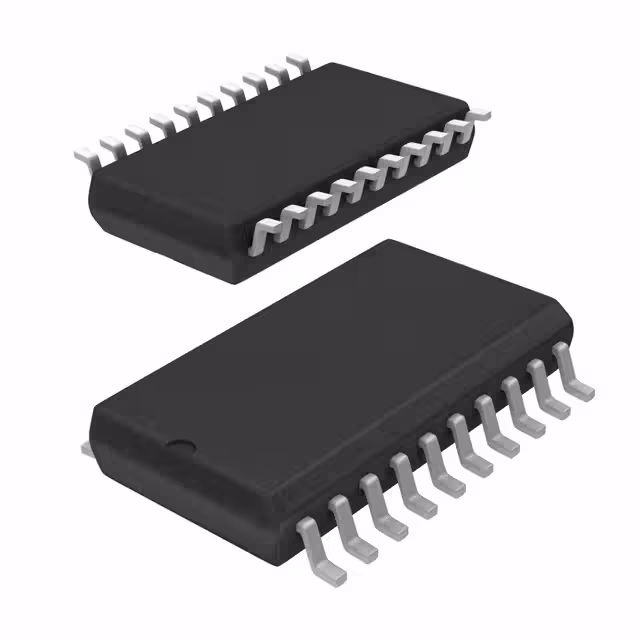

IC FF D-TYPE SNGL 8BIT 20SOIC
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output High, Low | 4mA, 4mA |
| Current - Quiescent (Iq) | 4 µA |
| Voltage - Supply | 2V ~ 3.6V |
| AC and DC characteristics | |
| Clock Frequency | 90 MHz |
| Max Propagation Delay @ V, Max CL | 14.5ns @ 3.3V, 50pF |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C(TA) |
| Package | Tube |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
| Other | |
| Base Product Number | 74LVX273 |
| Function | Master Reset |
| Input Capacitance | 4 pF |
| Mfr | onsemi |
| Number of Bits per Element | 8 |
| Number of Elements | 1 |
| Output Type | Non-Inverted |
| Product Status | Obsolete |
| Series | 74LVX |
| Trigger Type | Positive Edge |
| Type | D-Type |
