View full reportTechnical parameters
| Power | |
|---|---|
| Power dissipation considerations | low |
| Environment and package | |
| Halogen free | Yes |

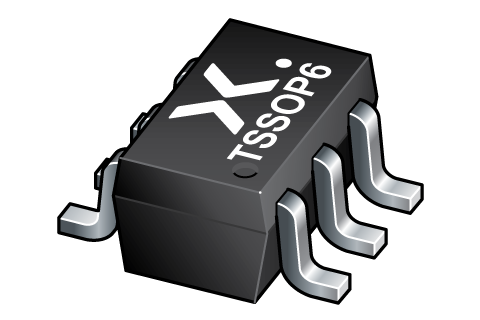

| Package name | TSSOP6 |
| RoHS | Compliant |
| Other | |
| Category | Bidirectional | Direction controlled |
| Logic switching levels | CMOS/LVTTL |
| Nr of bits | 1 |
| Output drive capability | ± 24 |
| Rth(j-a) | 268 |
| Rth(j-c) | 156 |
| Tamb | -40~125 |
| tpd | 2.5 |
| VCC(A) | 1.2 - 5.5 |
| VCC(B) | 1.2 - 5.5 |
| Ψth(j-top) | 41.4 |
