Nexperia USA Inc.Netherlands

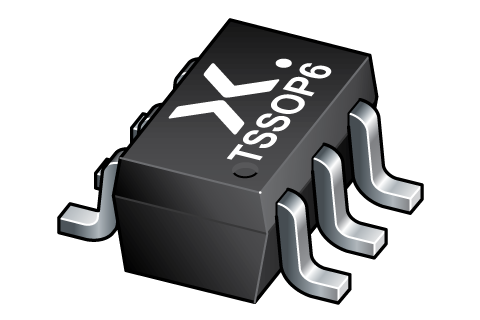

74LVCH1T45GW-Q100
Translators, Level ShiftersAll alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| 单路通道数 | 1ch |
| 最大输出电流 | 24mA |
| AC and DC characteristics | |
| tpLH-开通传输延迟时间 | 2.5ns |
| Environment and package | |
| 封装类型1 | TSSOP |
| Other | |
| VCCA最大值 | 5.5V |
| VCCA最小值 | 1.2V |
| VCCB最大值 | 5.5V |
| VCCB最小值 | 1.2V |
| 引脚数量1 | 6 |
| 最大数据速率 | NMbps |
