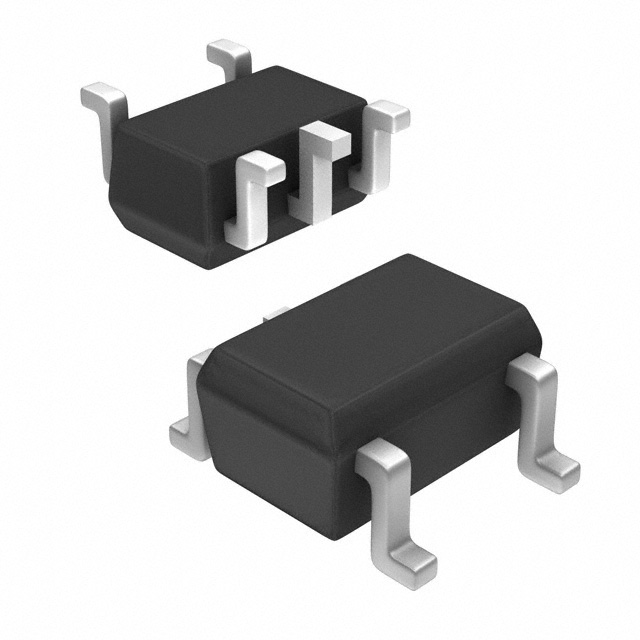

IC GATE NAND 1CH 2-INP SOT353
All alternatives
View full reportTechnical parameters
Key specs
Logic typeNAND
Elements1
Inputs2
Supply voltage1.65 ~ 5.5 V
Propagation delay5.5 nsMax · 5V
| Power | |
|---|---|
| Current - Output High, Low | 32mA, 32mA |
| Current - Quiescent (Max) | 4 µA |
| Voltage - Supply | 1.65V ~ 5.5V |
| AC and DC characteristics | |
| Max Propagation Delay @ V, Max CL | 5.5ns @ 5V, 50pF |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SOT-353 |
| Other | |
| Base Product Number | 74LVC1G00 |
| Features | - |
| Input Logic Level - High | 0.95V ~ 3.4V |
| Input Logic Level - Low | 0.7V ~ 0.8V |
| Logic Type | NAND Gate |
| Mfr | Diodes Incorporated |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Product Status | Active |
| Series | Automotive, AEC-Q100, 74LVC |
