NXP USA Inc.Netherlands
SERIAL IN PARALLEL OUT
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Supply | 2V ~ 6V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Bulk |

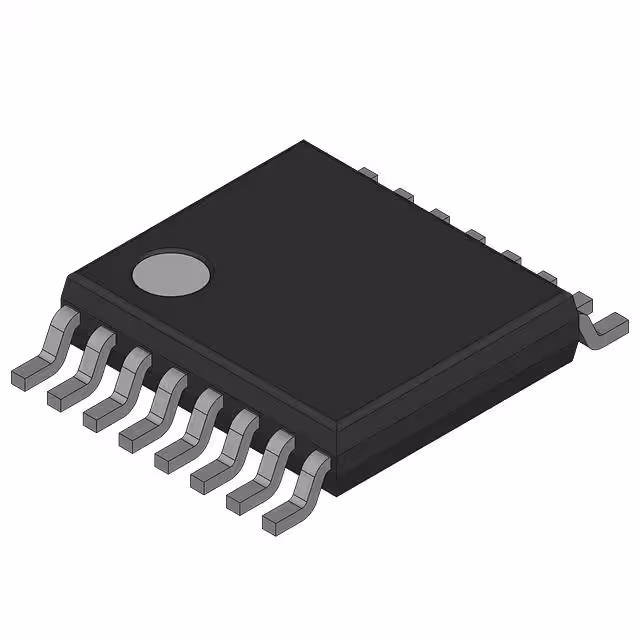

| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Other | |
| Base Product Number | 74HC595 |
| Function | Serial to Parallel, Serial |
| Logic Type | Shift Register |
| Mfr | NXP USA Inc. |
| Number of Bits per Element | 8 |
| Number of Elements | 1 |
| Output Type | Tri-State |
| Product Status | Active |
| Series | 74HC |
