74HC595

Shift Registers16-Lead Small Outline Integrated Circuit

SHIFT REG 8-BIT 3-STATE 2V-6V 16-SOIC

8-bit serial-in parallel-out shift register with 3-state output latches, operating voltage 2V-6V, max frequency 30MHz, available in SOIC, SOP, TSSOP, and PDIP packages.Checked against the datasheet

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Datasheet-verified parameters

18 items
ParameterValue and test conditionsSource
Package16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150'' Narrow; 16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300'' Wide; 16-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide; 16-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide; 16-L
Operating Temperature RangeMin: -40°C, Max: +85°C
Recommended Operating Supply VoltageMin: 2V, Max: 6V
Absolute Maximum Supply Voltage-0.5V to +7.0V
Storage Temperature Range-65°C to +150°C
Quiescent Supply CurrentMax: 80 µA (VCC=6.0V, TA=-40 to 85°C)
Input CurrentMax: 1 µA (VIN=VCC or GND, VCC=6.0V, TA=-40 to 85°C)
Maximum Operating FrequencyTyp: 50 MHz, Max: 30 MHz (VCC=5V, TA=25°C)
Minimum HIGH Level Input VoltageMin: 3.15 V (VCC=4.5V, TA=-40 to 85°C)
Maximum LOW Level Input VoltageMax: 1.35 V (VCC=4.5V, TA=-40 to 85°C)
Minimum HIGH Level Output VoltageMin: 3.98 V (VCC=4.5V, |IOUT|<=4.0mA, TA=-40 to 85°C)
Maximum LOW Level Output VoltageMax: 0.26 V (VCC=4.5V, |IOUT|<=4mA, TA=-40 to 85°C)
Propagation Delay TimeMax: 30 ns (RCK to QA thru QH, CL=45pF, VCC=5V, TA=25°C)
Setup TimeMin: 20 ns (SER to SCK, VCC=5V, TA=25°C)
Hold TimeMin: 0 ns (SER to SCK, VCC=5V, TA=25°C)
Power DissipationMax: 600 mW (Note 3)
DC Output Current, per pin±35 mA
3-STATE Output LeakageMax: ±5.0 µA (VOUT=VCC or GND, VCC=6.0V, TA=-40 to 85°C)
All parameters (6)ExpandCollapse
Power
DC Output Current, per pin (IOUT)±35 mA
Maximum Quiescent Supply Current (ICC)80 µA (Max)
Supply Voltage (VCC)2 V (Min) to 6 V (Max)
AC and DC characteristics
Maximum Operating Frequency of SCK30 MHz (Max)
Environment and package
Operating Temperature Range (TA)-40 °C (Min) to +85 °C (Max)
Package Description16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150

Pinout and package

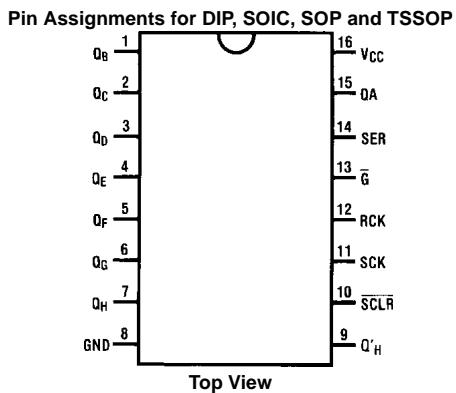

Connection Diagram
Connection Diagram

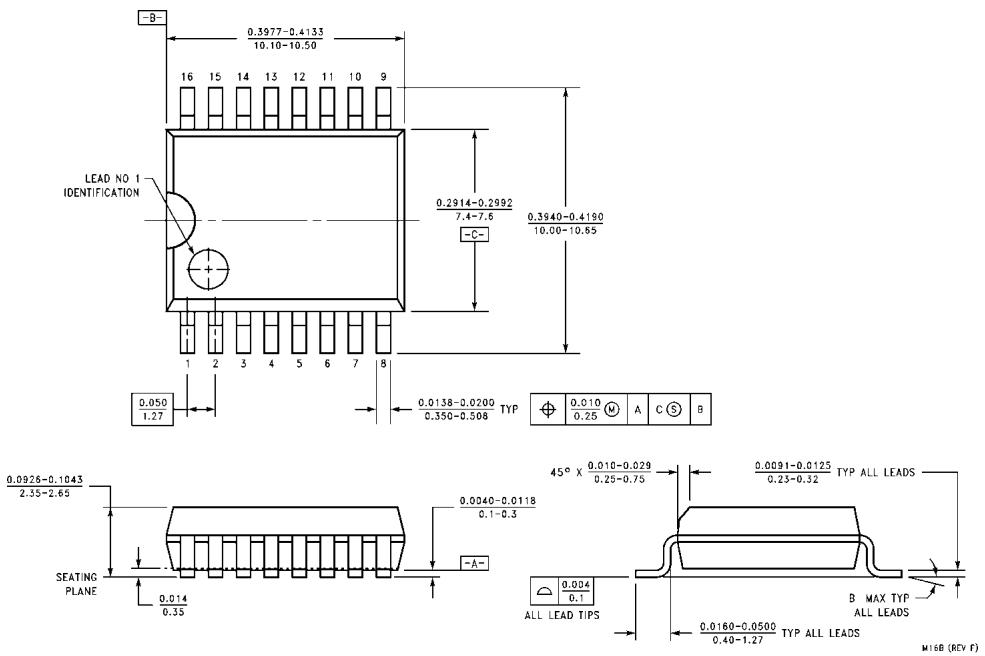

Package: 16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150'' Narrow; 16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300'' Wide; 16-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide; 16-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide; 16-L
PinNameFunctionSource
1VCC(Power Supply)
2QA(Parallel Output A)
3QB(Parallel Output B)
4QC(Parallel Output C)
5QD(Parallel Output D)
6QE(Parallel Output E)
7QF(Parallel Output F)
8QG(Parallel Output G)
9QH(Parallel Output H)
10GND(Ground)
11SCLR(Shift Register Clear, Active Low)
12SCK(Shift Clock)
13RCK(Storage Register Clock)
14SER(Serial Data Input)
15QH' (Serial Output, for Cascading)
16G(Output Enable, Active Low)
