TE ConnectivitySwitzerland

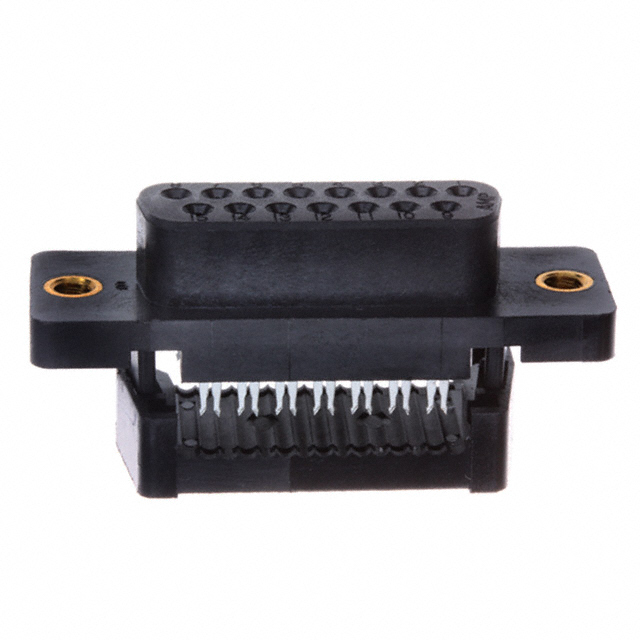

CONN D-SUB RCPT 15POS IDC
All alternatives
View full reportTechnical parameters
Key specs
Positions15
Rows2
GenderFemale
Current rating1.25 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 1.25A |
| Voltage Rating | - |
| Environment and package | |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -55°C ~ 105°C |
| Package | Bulk |
| Shell Size, Connector Layout | 2 (DA, A) |
| Other | |
| Backset Spacing | - |
| Base Product Number | 747051 |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Form | - |
| Contact Material | Phosphor Bronze |
| Contact Type | Signal |
| Dielectric Material | Thermoplastic |
| Features | Feed Through |
| Flange Feature | Housing/Shell (4-40) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mfr | TE Connectivity AMP Connectors |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Product Status | Obsolete |
| Series | AMPLIMITE HDF-20 |
| Shell Material, Finish | - |
| Termination | IDC, Ribbon Cable |
| Wire Gauge | - |
