Würth ElektronikGermany

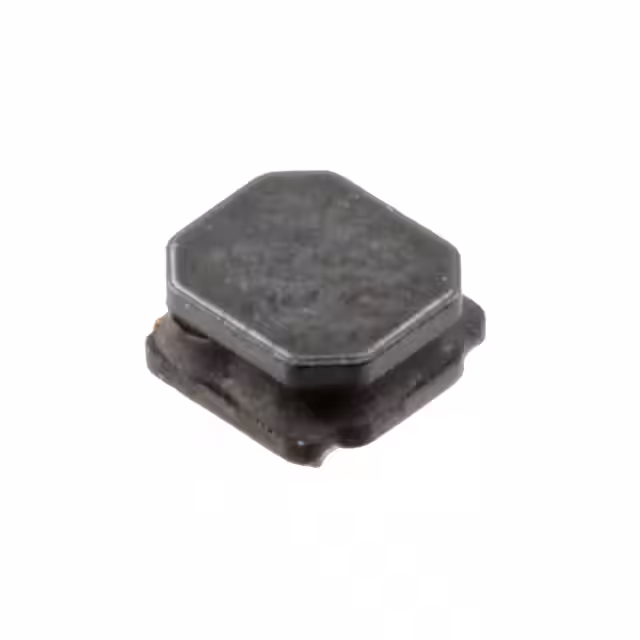

FIXED IND 1UH 3.9A 19.8 MOHM SMD
All alternatives
View full reportTechnical parameters
Key specs
Inductance1 µH
Rated current3.9 AMax
Saturation current6.3 AMax
DC resistance19.8 mΩMax
| Power | |
|---|---|
| Current Rating (Amps) | 3.9 A |
| Current - Saturation (Isat) | 6.3A |
| AC and DC characteristics | |
| Frequency - Self Resonant | 145MHz |
| Inductance Frequency - Test | 100 kHz |
| Environment and package | |
| Height - Seated (Max) | 0.079" (2.00mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | Nonstandard |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Supplier Device Package | - |
| Other | |
| DC Resistance (DCR) | 19.8mOhm |
| Inductance | 1 µH |
| Material - Core | - |
| Mfr | Würth Elektronik |
| Product Status | Active |
| Q @ Freq | - |
| Ratings | AEC-Q200 |
| Series | WE-LQS |
| Shielding | Semi-Shielded |
| Tolerance | ±30% |
| Type | Wirewound |
