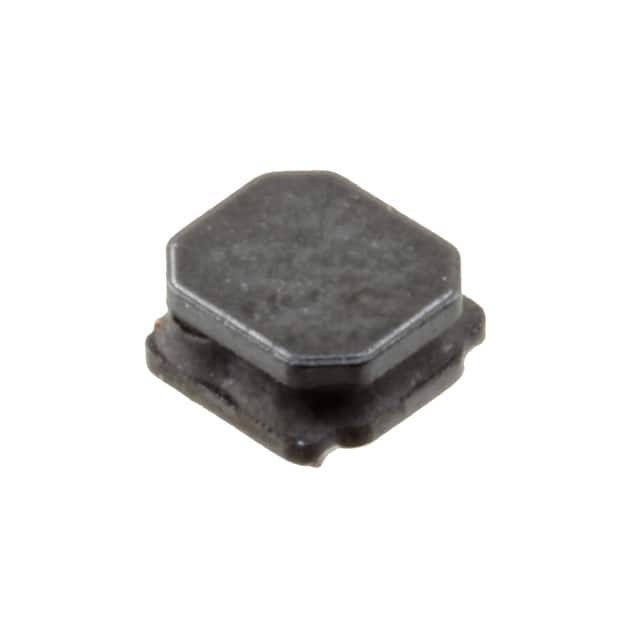

FIXED IND 1MH 160MA 10.342OHM SM
All alternatives
View full reportTechnical parameters
Key specs
Inductance1 mH
Rated current160 mAMax
Saturation current90 mAMax
DC resistance10.34 ΩMax
| Power | |
|---|---|
| Current Rating (Amps) | 160 mA |
| Current - Saturation (Isat) | 90mA |
| AC and DC characteristics | |
| Frequency - Self Resonant | 3MHz |
| Inductance Frequency - Test | 100 kHz |
| Environment and package | |
| Height - Seated (Max) | 0.098" (2.50mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | Nonstandard |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Supplier Device Package | SMD |
| Other | |
| DC Resistance (DCR) | 10.342Ohm |
| Inductance | 1 mH |
| Material - Core | Ferrite |
| Mfr | Würth Elektronik |
| Product Status | Obsolete |
| Q @ Freq | - |
| Ratings | AEC-Q200 |
| Series | WE-LQS |
| Shielding | Semi-Shielded |
| Tolerance | ±20% |
| Type | Drum Core, Wirewound |
