Würth ElektronikGermany

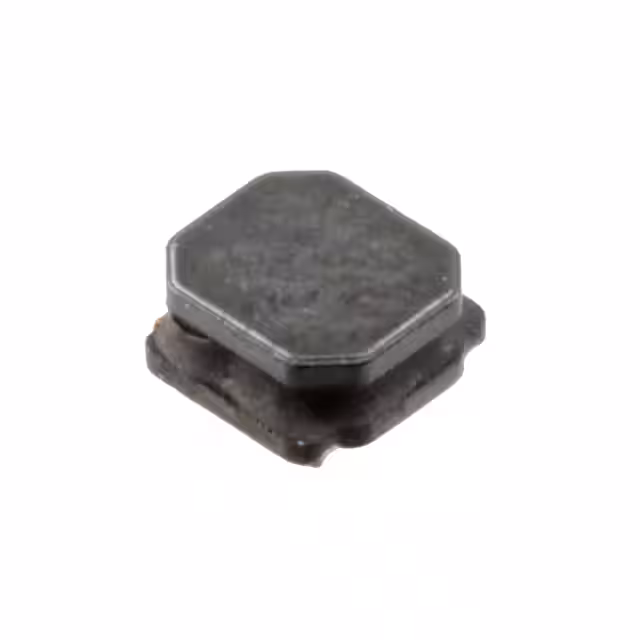

FIXED IND 47UH 400MA 1.05OHM SMD
All alternatives
View full reportTechnical parameters
Key specs
Inductance47 µH
Rated current400 mAMax
Saturation current410 mAMax
DC resistance1.05 ΩMax
| Power | |
|---|---|
| Current Rating (Amps) | 400 mA |
| Current - Saturation (Isat) | 410mA |
| AC and DC characteristics | |
| Frequency - Self Resonant | 15MHz |
| Inductance Frequency - Test | 100 kHz |
| Environment and package | |
| Height - Seated (Max) | 0.059" (1.50mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | Nonstandard |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Supplier Device Package | 3015 |
| Other | |
| DC Resistance (DCR) | 1.05Ohm |
| Inductance | 47 µH |
| Material - Core | Ferrite |
| Mfr | Würth Elektronik |
| Product Status | Active |
| Q @ Freq | - |
| Ratings | AEC-Q200 |
| Series | WE-LQS |
| Shielding | Semi-Shielded |
| Tolerance | ±20% |
| Type | Drum Core, Wirewound |
