Switchcraft Inc.United States
CONN PLUG MONO 3.55MM 2COND
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Rated | - |
| Environment and package | |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | - |
| Package | Bulk |
| Panel Hole Size | - |
| Thread Size | - |
| Other | |

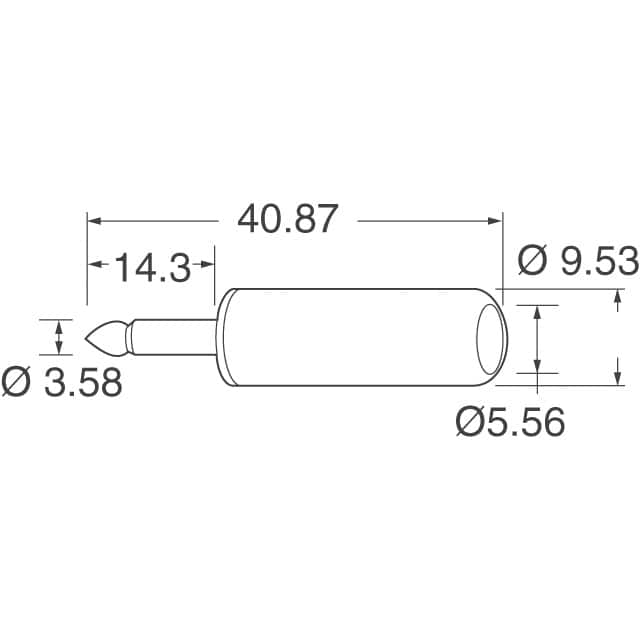

| Actual Diameter | 0.140" (3.56mm) |
| Base Product Number | - |
| Body Color | Silver, Black |
| Body Material | - |
| Cable Opening | 0.218" (5.54mm) |
| Connector Type | Phone Plug |
| Contact Material | Brass |
| Contact Material - Plating | Nickel |
| Features | - |
| Gender | Male |
| Housing Material | Thermoplastic |
| Includes | 4 pcs - 1 Connector, 1 Handle, 2 Screws |
| Industry Recognized Mating Diameter | 3.55mm (0.14", Tini Plug) |
| Insulation Color | - |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | 0.560" (14.20mm) |
| Mfr | Switchcraft Inc. |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Product Status | Active |
| Series | Tini-Plug® |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Screw |
