Bourns Inc.United States

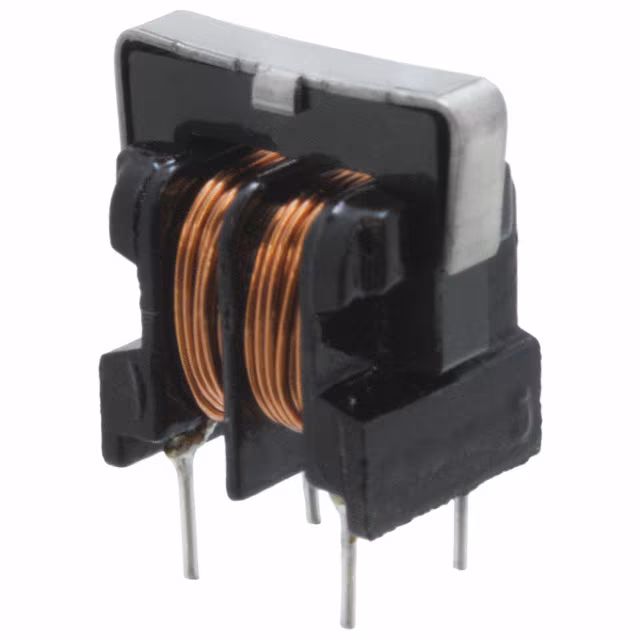

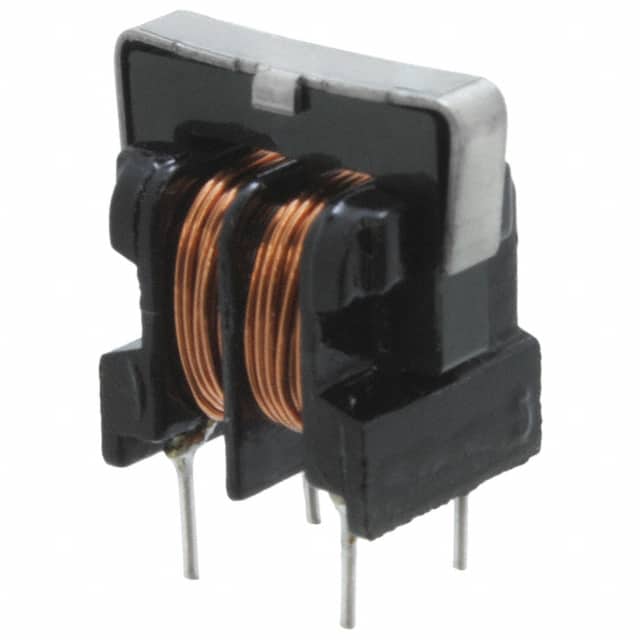

CMC 1MH 2.4A 2LN TH
All alternatives
View full reportTechnical parameters
Key specs
Number of lines2
Current rating2.4 AMax
DC resistance49 mΩMax
| Power | |
|---|---|
| Current Rating (Max) | 2.4A |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | - |
| AC and DC characteristics | |
| Inductance @ Frequency | 1 mH @ 1 kHz |
| Environment and package | |
| Height (Max) | 0.827" (21.00mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~105°C |
| Package | Bulk |
| Package / Case | Vertical, 4 PC Pin |
| Size / Dimension | 0.748" L x 0.669" W (19.00mm x 17.00mm) |
| Other | |
| Approval Agency | - |
| Base Product Number | 7404 |
| DC Resistance (DCR) (Max) | 49mOhm |
| Features | - |
| Filter Type | Power Line |
| Mfr | Bourns Inc. |
| Number of Lines | 2 |
| Product Status | Active |
| Ratings | - |
| Series | 7400 |
