Bourns Inc.United States

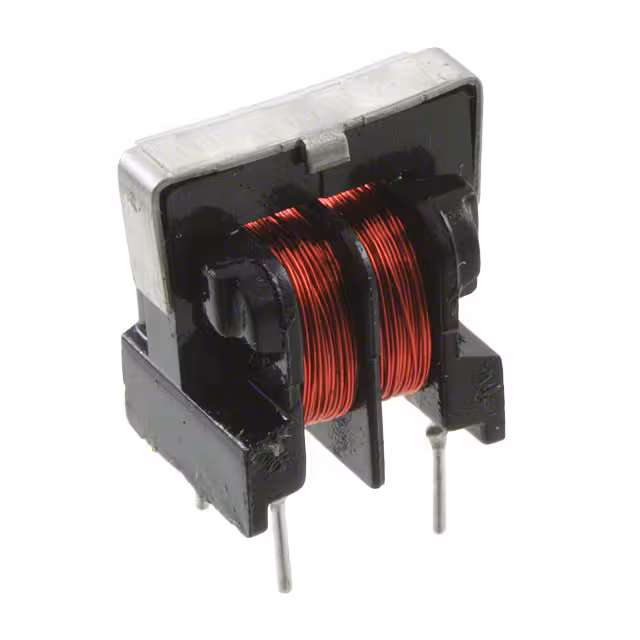

CMC 10MH 350MA 2LN TH
All alternatives
View full reportTechnical parameters
Key specs
Number of lines2
Current rating350 mAMax
DC resistance2.2 ΩMax
| Power | |
|---|---|
| Current Rating (Max) | 350mA |
| Voltage Rating - AC | - |
| Voltage Rating - DC | - |
| AC and DC characteristics | |
| Inductance @ Frequency | 10 mH @ 1 kHz |
| Environment and package | |
| Height (Max) | 0.669" (17.00mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~105°C |
| Package | Bulk |
| Package / Case | Vertical, 4 PC Pin |
| Size / Dimension | 0.669" L x 0.433" W (17.00mm x 11.00mm) |
| Other | |
| Approval Agency | - |
| Base Product Number | 7355 |
| DC Resistance (DCR) (Max) | 2.2Ohm |
| Features | - |
| Filter Type | - |
| Mfr | Bourns Inc. |
| Number of Lines | 2 |
| Product Status | Obsolete |
| Ratings | - |
| Series | 7300 |
Documents
No documents are linked to this part yet.
