Pomona ElectronicsUnited States

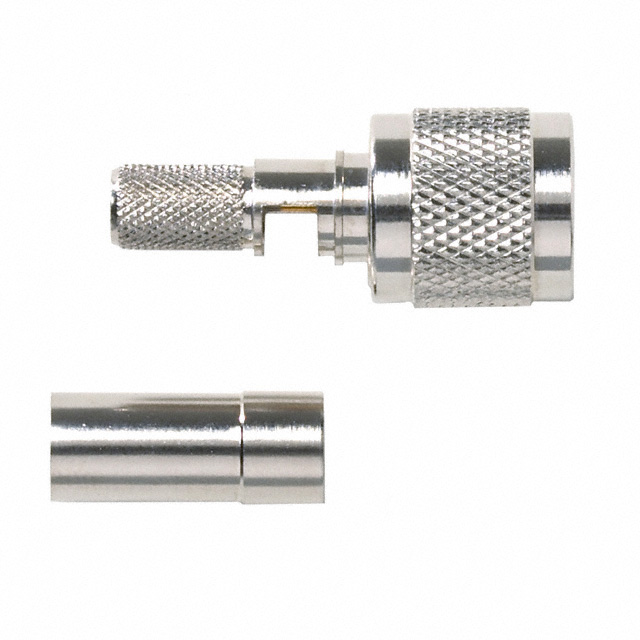

CONN TNC PLUG STR 50 OHM CRIMP
All alternatives
View full reportTechnical parameters
Key specs
Connector styleTNC
GenderMale
Impedance50 Ω
Max frequency6 GHzMax
| AC and DC characteristics | |
|---|---|
| Frequency - Max | 6 GHz |
| Impedance | 50 Ohms |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | - |
| Other | |
| Base Product Number | - |
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-59, 62 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | TNC |
| Connector Type | Plug, Male Pin |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Features | - |
| Housing Color | Silver |
| Includes | 3 pcs - 1 Connector, 1 Ferrule, 1 Heat Shrink |
| Ingress Protection | - |
| Insertion Loss | - |
| Mating Cycles | 500 |
| Mfr | Pomona Electronics |
| Number of Ports | 1 |
| Packaging | Bulk |
| Part Status | Obsolete |
| Series | - |
| Shield Termination | Crimp |
