73005
Pomona ElectronicsUnited States

73005

ObsoleteCoaxial Connector (RF) Assemblies

CONN MCX PLUG R/A 50 OHM SOLDER

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Connector styleMCX
GenderMale
Impedance50 Ω
Max frequency3 GHzMax
Power
Voltage Rating170 V
AC and DC characteristics
Frequency - Max3 GHz
Impedance50Ohm
Environment and package
Mounting Feature-
Mounting TypeFree Hanging (In-Line), Right Angle
Operating Temperature-55°C~155°C
PackageBulk
Other
Base Product Number-
Body FinishGold
Body MaterialBrass
Cable GroupRG-174, 316
Center Contact MaterialBrass
Center Contact PlatingGold
Connector StyleMCX
Connector TypePlug, Male Pin
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeSnap-On
Features-
Housing ColorGold

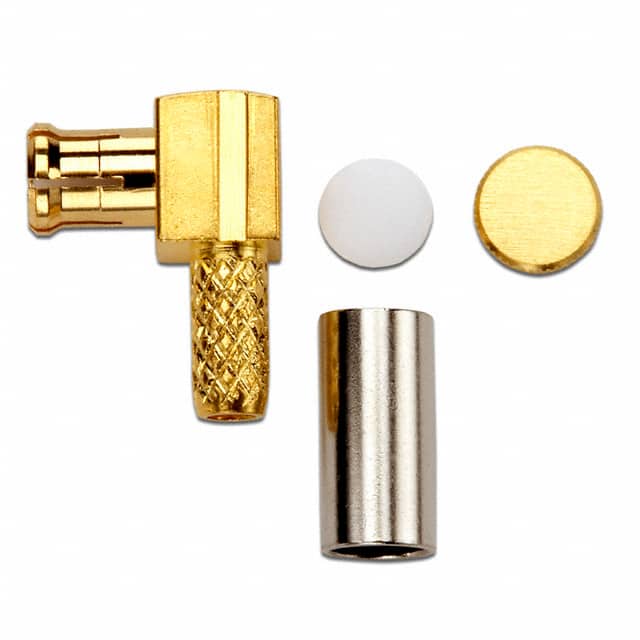

Includes4 pcs - 1 Connector, 1 End Cap, 1 Ferrule, 1 Insulator
Ingress Protection-
Insertion Loss-
Mating Cycles500
MfrPomona Electronics
Number of Ports1
Product StatusObsolete
Series-
Shield TerminationCrimp
