Century Spring CorpUnited States

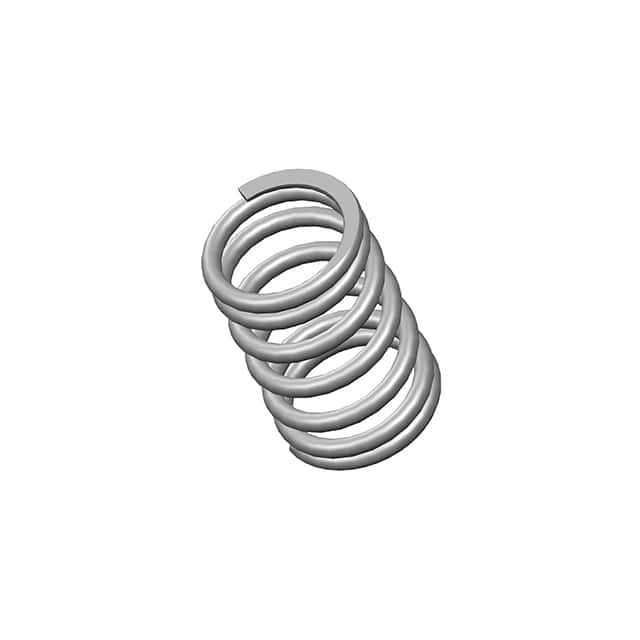

COMP O=1.937,L= 3.00,W= .225
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Package | Box |
| Other | |
| Diameter - Inside | 1.487" (37.77mm) |
| Diameter - Outside | 1.937" (49.20mm) |
| End Style | Closed & Ground |
| Finish | None |
| Free Length | 3.000" (76.20mm) |
| Material | Music Wire |
| Mfr | Century Spring Corp |
| Product Status | Active |
| Rate | 156.0 lbs/in |
| Series | - |
| Wire Diameter | 0.225" (5.72mm) |
Documents
No documents are linked to this part yet.
