Century Spring CorpUnited States

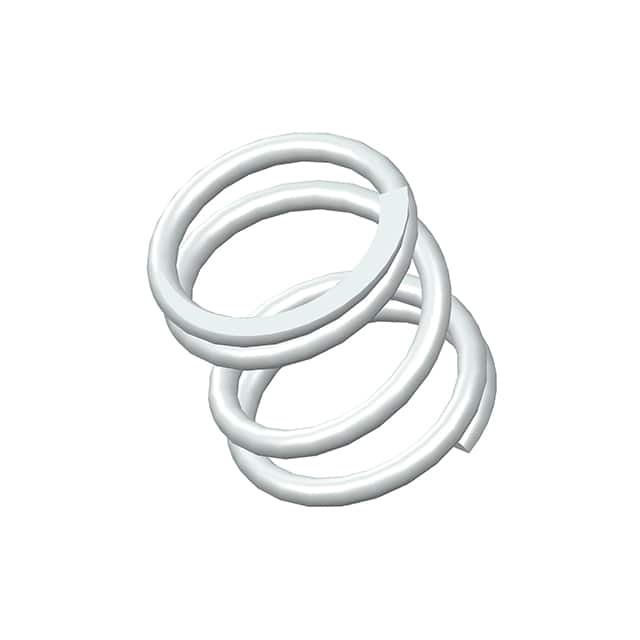

COMP O= .480,L= .50,W= .051
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Package | Box |
| Other | |
| Diameter - Inside | 0.378" (9.60mm) |
| Diameter - Outside | 0.480" (12.19mm) |
| End Style | Closed & Ground |
| Finish | None |
| Free Length | 0.500" (12.70mm) |
| Material | Stainless Steel |
| Mfr | Century Spring Corp |
| Product Status | Active |
| Rate | 50.0 lbs/in |
| Series | - |
| Wire Diameter | 0.051" (1.30mm) |
