ebm-papst Inc.Germany

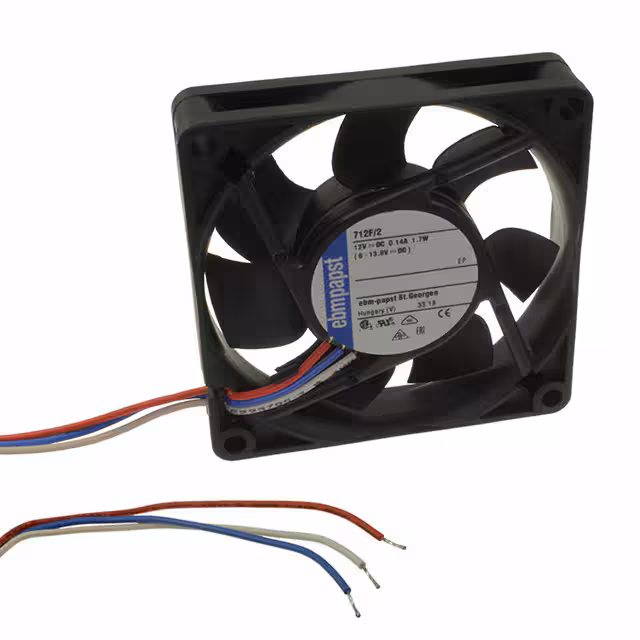

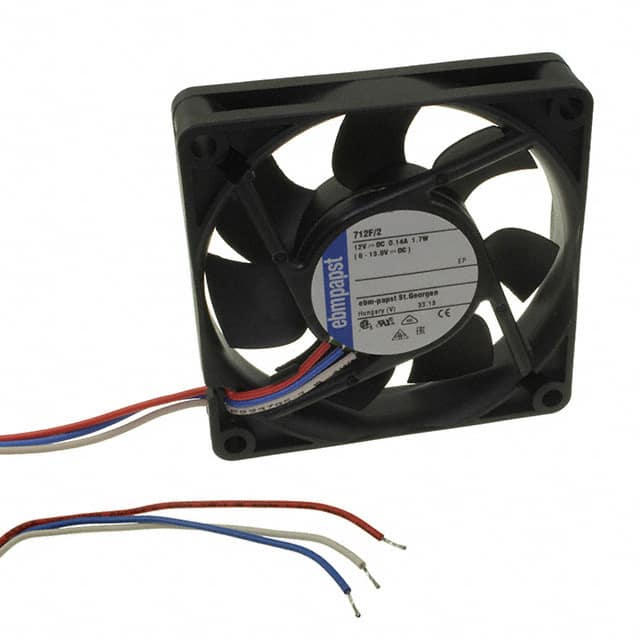

FAN AXIAL 70X15MM 12VDC WIRE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Power (Watts) | 1.7 W |
| Voltage Range | 8 ~ 13.8VDC |
| Voltage - Rated | 12VDC |
| AC and DC characteristics | |
| Noise | 38.0dB(A) |
| Environment and package | |
| Lifetime @ Temp. | 60000 Hrs @ 40°C |
| Operating Temperature | -4~158°F(-20~70°C) |
| Package | Bulk |
| Size / Dimension | Square - 70mm L x 70mm H |
| Other | |
| Air Flow | 25.9 CFM (0.725m³/min) |
| Approval Agency | - |
| Base Product Number | 712F |
| Bearing Type | Sintec |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach) |
| Ingress Protection | - |
| Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Mfr | ebm-papst Inc. |
| Product Status | Active |
| RPM | 5300 RPM |
| Series | 700F |
| Static Pressure | - |
| Termination | 3 Wire Leads |
| Width | 15.00mm |
Documents
No documents are linked to this part yet.
