ebm-papst Inc.Germany

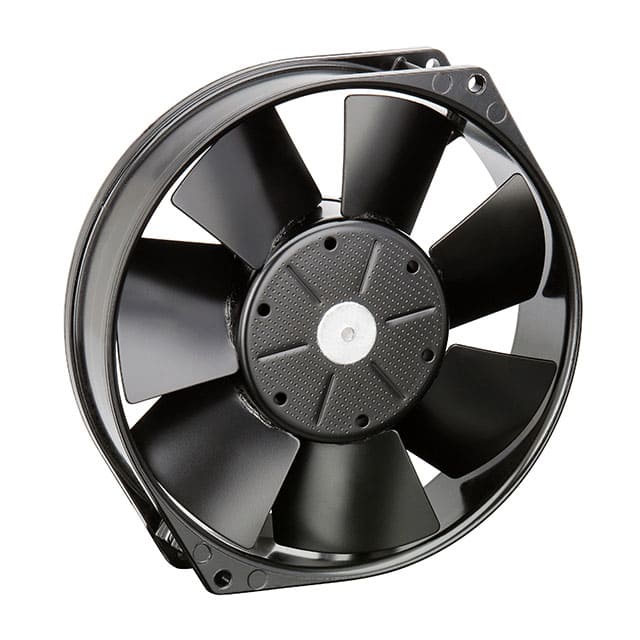

FAN AXIAL 150X38MM 24VDC WIRE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 0.600A |
| Power (Watts) | 12 W |
| Voltage Range | 12 ~ 30VDC |
| Voltage - Rated | 24VDC |
| AC and DC characteristics | |
| Noise | 55.0dB(A) |
| Environment and package | |
| Lifetime @ Temp. | 80000 Hrs @ 40°C |
| Operating Temperature | -13~162°F(-25~72°C) |
| Package | Bulk |
| Size / Dimension | Round - 150mm Dia |
| Other | |
| Air Flow | 212.0 CFM (5.94m³/min) |
| Approval Agency | CE, CSA, UL, VDE |
| Base Product Number | 7114 |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | - |
| Ingress Protection | - |
| Material - Blade | Steel |
| Material - Frame | Aluminum |
| Mfr | ebm-papst Inc. |
| Product Status | Active |
| RPM | 2850 RPM |
| Series | 7100N |
| Static Pressure | - |
| Termination | 2 Wire Leads |
| Weight | 1.4 lbs (635.0 g) |
| Width | 38.00mm |
