Laird Thermal Systems, Inc.United States

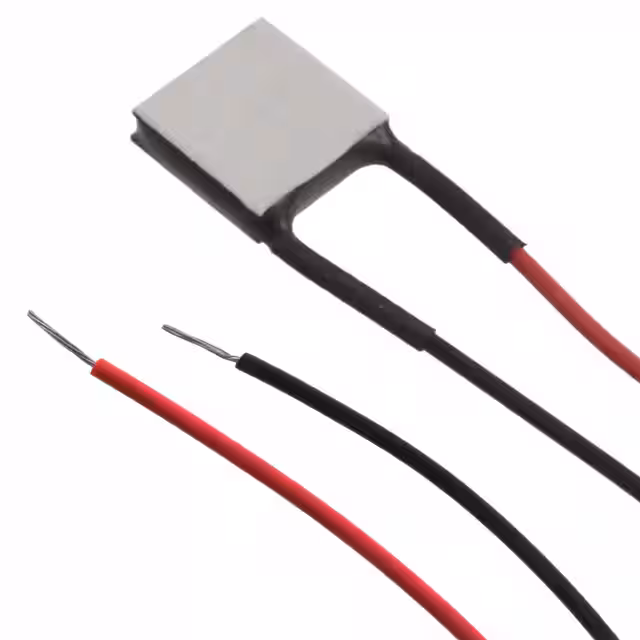

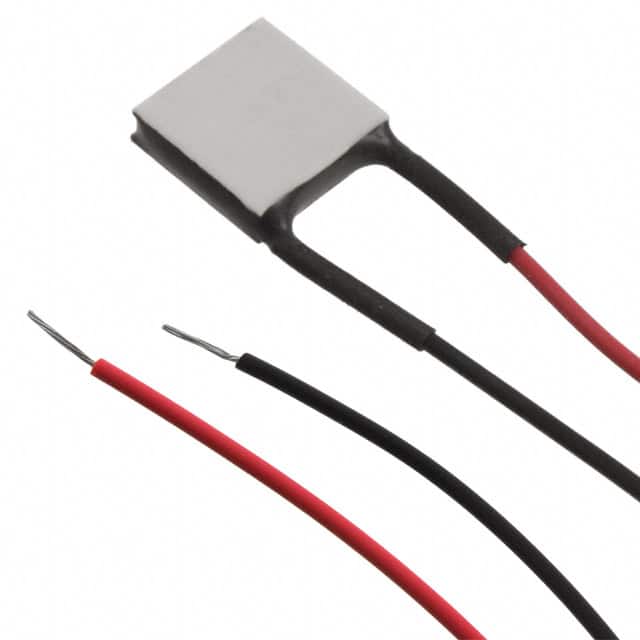

PELTIER CP08,31,06,L,EP,W4.5
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Max | 2.1 A |
| Voltage - Max | 3.7 V |
| Environment and package | |
| Height | 3.40mm |
| Operating Temperature | 80°C |
| Package | Bulk |
| Size / Dimension | Square - 12.30mm L x 12.30mm W |
| Other | |
| Base Product Number | 71035 |
| Delta Tmax @ Th | 67°C @ 25°C |
| Features | Lead Wires, Sealed - Epoxy |
| Mfr | Laird Thermal Systems, Inc. |
| Number of Stages | 1 |
| Product Status | Active |
| Qmax @ Th | 4.5W @ 25°C |
| Resistance | 1.54 Ohms |
| Series | CP |
