Bourns Inc.United States

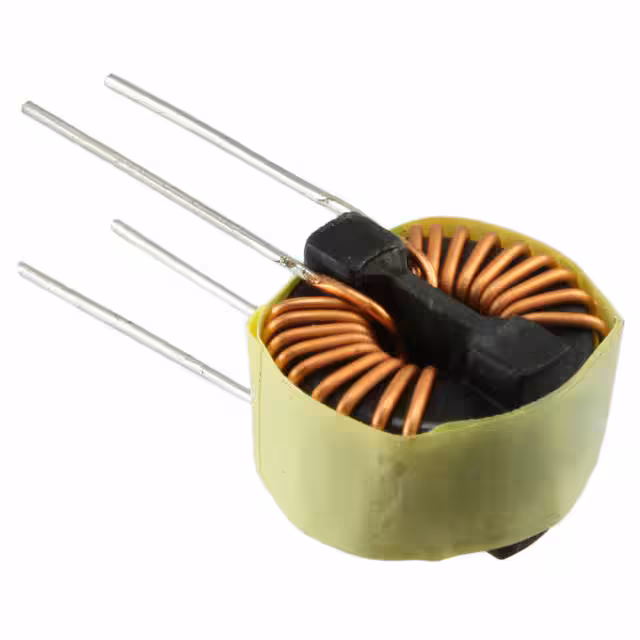

CMC 850UH 1A 2LN TH
All alternatives
View full reportTechnical parameters
Key specs
Number of lines2
Current rating1 AMax
DC resistance60 mΩMax
| Power | |
|---|---|
| Current Rating (Max) | 1A |
| Voltage Rating - AC | - |
| Voltage Rating - DC | - |
| AC and DC characteristics | |
| Inductance @ Frequency | 850 µH @ 1 kHz |
| Environment and package | |
| Height (Max) | 0.700" (17.78mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~105°C |
| Package | Bulk |
| Package / Case | Vertical, No Base, 4 PC Pin |
| Size / Dimension | 0.700" Dia x 0.550" W (17.78mm x 13.97mm) |
| Other | |
| Approval Agency | - |
| Base Product Number | 7102 |
| DC Resistance (DCR) (Max) | 60mOhm |
| Features | - |
| Filter Type | - |
| Mfr | Bourns Inc. |
| Number of Lines | 2 |
| Product Status | Active |
| Ratings | - |
| Series | 7100 |
