Alpha WireUnited States
7046

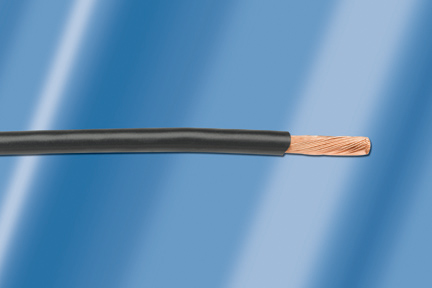

ActiveOur hook-up wire is available in a variety of insulations to meet your electrical and mechanical needs.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| 1) Voltage Rating | 600 V RMS |
| Environment and package | |
| 1) Temperature Range | -55 to 125°C |
| Other | |
| 1) Component 1 | 1 X 1 HOOKUP |
| (1) Print | ALPHA WIRE-* E163869 RU AWM 3271 125C 600V VW-1 LLXXXXX CSA CL-1251 FT1 X-LINK ROHS * = Factory Code [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.] |
| 2) Bend Radius | 10X Cable Diameter |
| (2) Color(s) | WHITE, BLACK, RED, ORANGE |
| 2) Inductance | 0.05 μH/ft, Nominal |
| 3) California Proposition 65 | This product may contain substances known to the State of California to cause Cancer or Reproductive Harm, but is exempt from labeling based on the Consent Judgement. See the Alpha Wire website for more information. |
| 3) Conductor DCR | 2.8 Ω/1000ft @20°C, Nominal |
| 3) Pull Tension | 32 Lbs, Maximum |
| a) 1000 FT | 10.5 x 5 x 3.5 Continuous length |
| AWM/STYLE 3271 | VW-1 |
| b) 100 FT | 6.5 x 2 x 1.9 Continuous length |
| Electrical Properties | (For Engineering purposes only) |
| Packaging | Flange x Traverse x Barrel (inches) |
