SCHURTER Inc.Switzerland

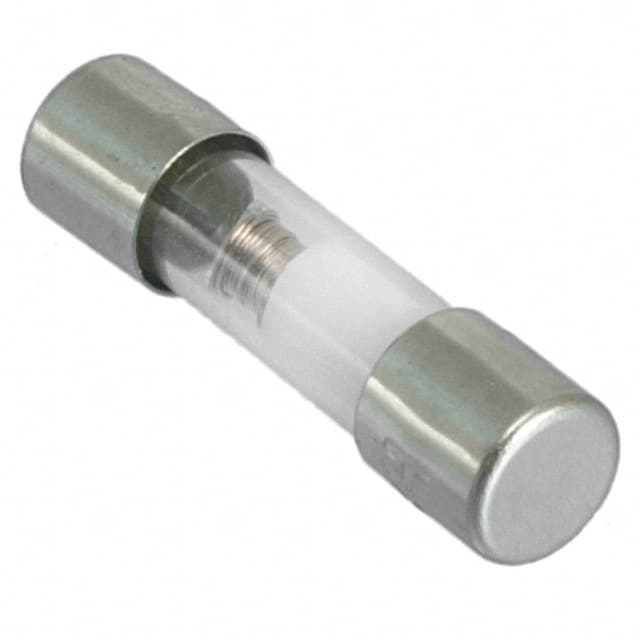

FUSE GLASS 3.15A 125VAC 5X20MM
All alternatives
View full reportTechnical parameters
Key specs
Rated current3.15 A
Rated voltage125 V
Response timeSlow
Breaking capacity100 A
| Power | |
|---|---|
| Breaking Capacity @ Rated Voltage | 100A |
| Current Rating (Amps) | 3.15 A |
| Voltage Rating - AC | 125 V |
| Environment and package | |
| Mounting Type | Requires Holder |
| Operating Temperature | -40°C~70°C |
| Package | Bulk |
| Package / Case | 5mm x 20mm |
| Size / Dimension | 0.197" Dia x 0.787" L (5.00mm x 20.00mm) |
| Other | |
| Approval Agency | UR |
| Color | - |
| Fuse Type | Cartridge, Glass |
| Melting I²t | 370 |
| Mfr | SCHURTER Inc. |
| Product Status | Obsolete |
| Response Time | Slow Blow |
| Series | D1TD |
