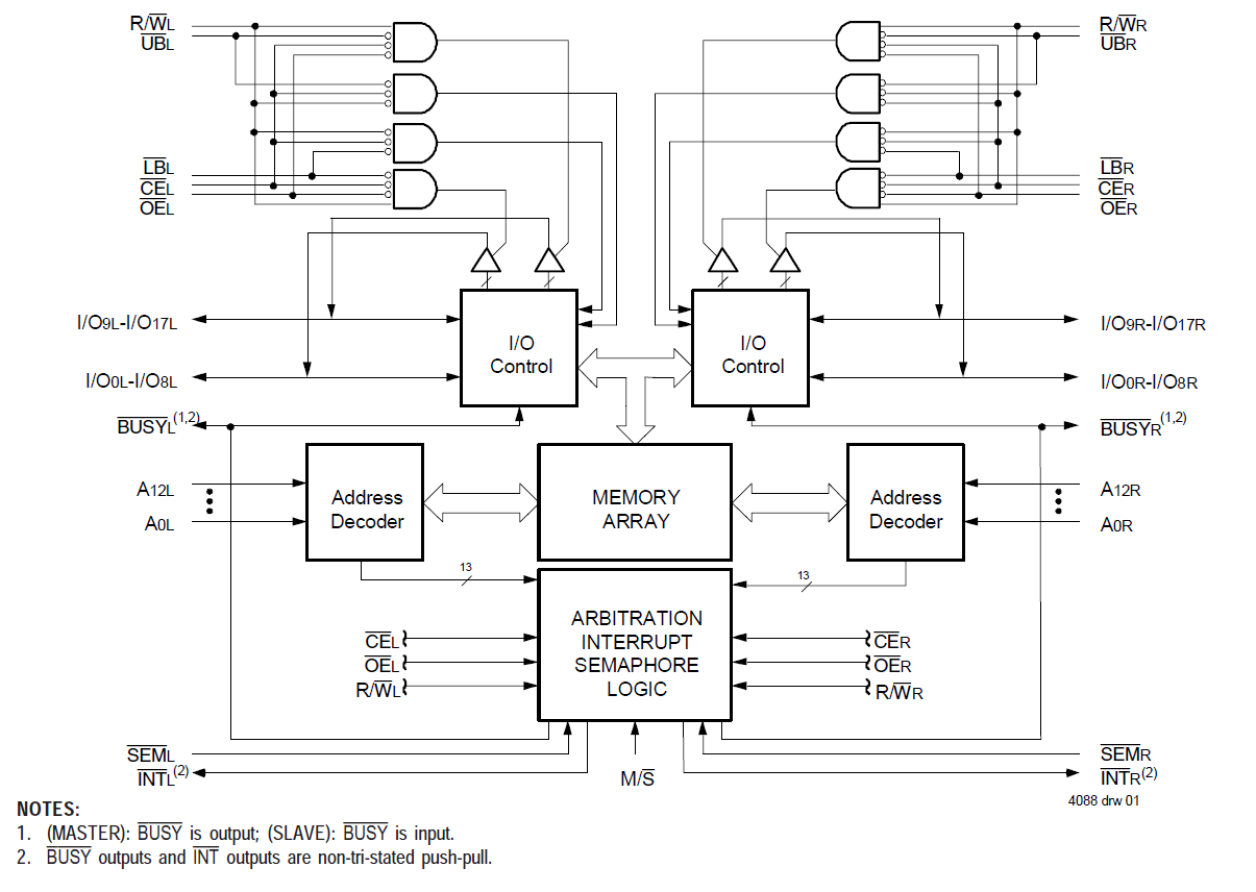

8K x 18 Dual-Port RAM
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Core Voltage (V) | 5 |
| Environment and package | |
| Moisture Sensitivity Level (MSL) | 3 |
| Package Area (mm²) | 196 |
| Pkg. Dimensions (mm) | 14.0 x 14.0 x 1.4 |
| Temp. Range (°C) | -40 to 85°C |
| Other | |
| Access Time (ns) | 20 |
| Architecture | Dual-Port |
| Bus Width (bits) | 18 |
| Carrier Type | Tray |
| Density (Kb) | 144 |
| Function | Busy, Interrupt, Master, Semaphore, Slave |
| Interface | Async |
| I/O Type | 5.0 V TTL |
| Lead Count (#) | 100 |
| Length (mm) | 14 |
| MOQ | 108 |
| Organization | 8K x 18 |
| Pb Free Category | e0 |
| Pb (Lead) Free | No |
| Pitch (mm) | 0.5 |
| Pkg. Type | TQFP |
| Qty. per Carrier (#) | 90 |
| Qty. per Reel (#) | 0 |
| Requires Terms and Conditions | Does not require acceptance of Terms and Conditions |
| Tape & Reel | No |
| Thickness (mm) | 1.4 |
| Width (mm) | 14 |
