Visual Communications Company - VCCUnited States

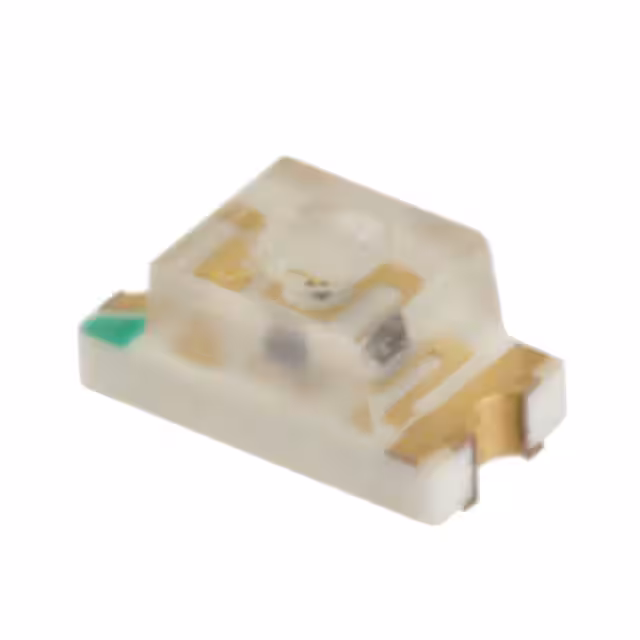

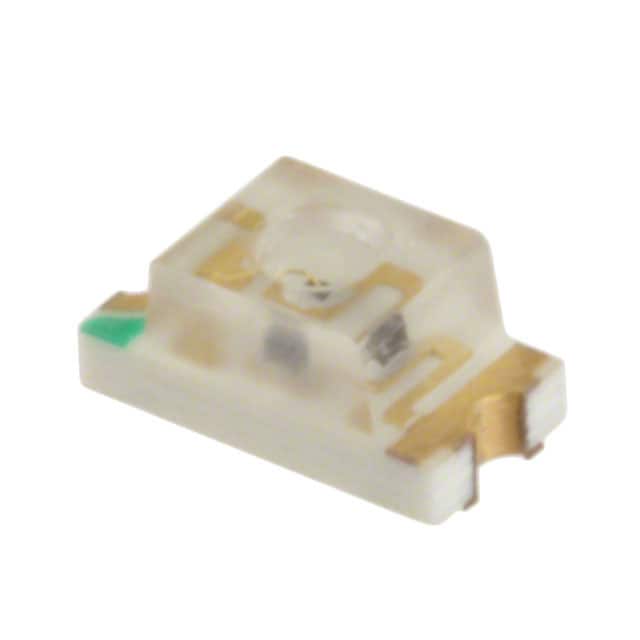

LED RED CLEAR 1206 SMD
All alternatives
View full reportTechnical parameters
Key specs
ColorRed
Wavelength660 nm
Forward voltage1.7 VTyp
Test current20 mA
Luminous intensity17 mcd
| Power | |
|---|---|
| Current - Test | 20mA |
| Voltage - Forward (Vf) (Typ) | 1.7V |
| Environment and package | |
| Height (Max) | 1.50mm |
| Lens Size | 1.80mm x 1.50mm |
| Mounting Type | Surface Mount |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 1206 (3016 Metric) |
| Size / Dimension | 3.00mm L x 1.50mm W |
| Supplier Device Package | 1206 |
| Other | |
| Color | Red |
| Configuration | Standard |
| Features | - |
| Lens Color | Colorless |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Mfr | Visual Communications Company - VCC |
| Millicandela Rating | 17mcd |
| Product Status | Obsolete |
| Series | 7010X |
| Viewing Angle | 70° |
| Wavelength - Dominant | - |
| Wavelength - Peak | 660nm |
