Würth ElektronikGermany

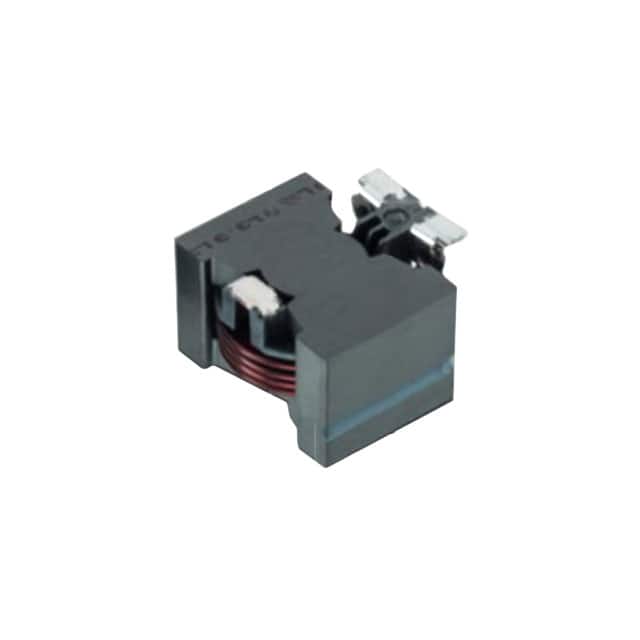

FIXED IND 1.5UH 50A 0.6 MOHM SMD
All alternatives
View full reportTechnical parameters
Key specs
Inductance1.5 µH
Rated current50 AMax
Saturation current45 AMax
DC resistance600 µΩMax
| Power | |
|---|---|
| Current Rating (Amps) | 50 A |
| Current - Saturation (Isat) | 45A |
| AC and DC characteristics | |
| Frequency - Self Resonant | - |
| Inductance Frequency - Test | 100 kHz |
| Environment and package | |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~150°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | Nonstandard |
| Size / Dimension | 1.083" L x 1.083" W (27.50mm x 27.50mm) |
| Supplier Device Package | - |
| Other | |
| DC Resistance (DCR) | 0.6mOhm |
| Inductance | 1.5 µH |
| Material - Core | - |
| Mfr | Würth Elektronik |
| Product Status | Obsolete |
| Q @ Freq | - |
| Ratings | AEC-Q200 |
| Series | WE-FLAT-I |
| Shielding | Shielded |
| Tolerance | ±25% |
| Type | Wirewound |
