Würth ElektronikGermany

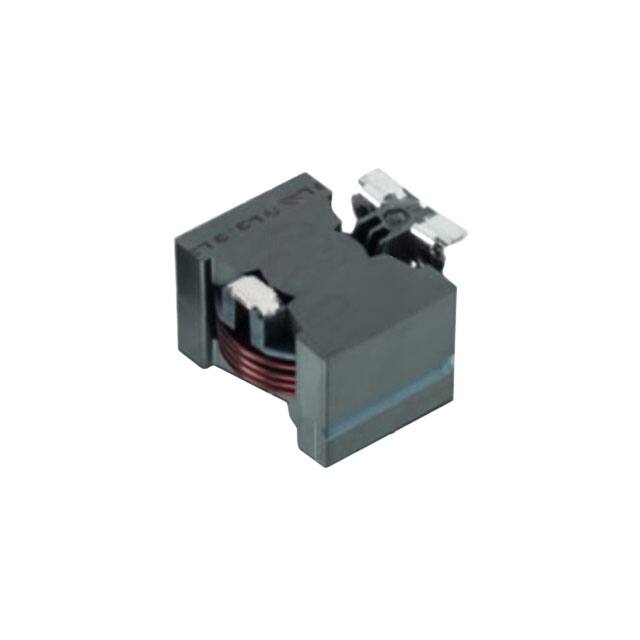

FIXED IND 10UH 35A 1.1 MOHM SMD
All alternatives
View full reportTechnical parameters
Key specs
Inductance10 µH
Rated current35 AMax
Saturation current10 AMax
DC resistance1.1 mΩMax
| Power | |
|---|---|
| Current Rating (Amps) | 35 A |
| Current - Saturation (Isat) | 10A |
| AC and DC characteristics | |
| Frequency - Self Resonant | - |
| Inductance Frequency - Test | 100 kHz |
| Environment and package | |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~150°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | Nonstandard |
| Size / Dimension | 1.083" L x 1.083" W (27.50mm x 27.50mm) |
| Supplier Device Package | - |
| Other | |
| DC Resistance (DCR) | 1.1mOhm |
| Inductance | 10 µH |
| Material - Core | - |
| Mfr | Würth Elektronik |
| Product Status | Obsolete |
| Q @ Freq | - |
| Ratings | AEC-Q200 |
| Series | WE-FLAT-I |
| Shielding | Shielded |
| Tolerance | ±15% |
| Type | Wirewound |
