View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output (Max) | Parallel 72mA, Series 36mA |
| Power - Max | 1.6VA |
| Voltage - Isolation | 4000Vrms |
| Voltage - Primary | 115V, 230V |
| Voltage - Secondary (Full Load) | Parallel 22V, Series 44V |
| Environment and package | |
| Height - Seated (Max) | 18.50mm |
| Mounting Type | Through Hole |
| Package | Bulk |

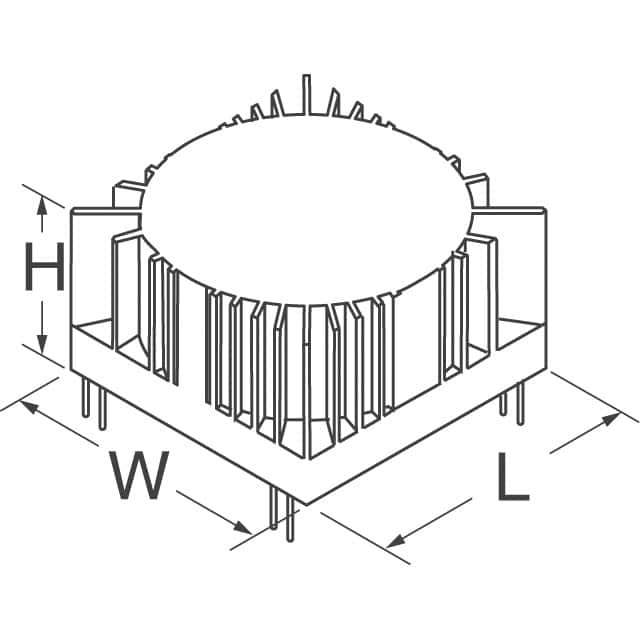

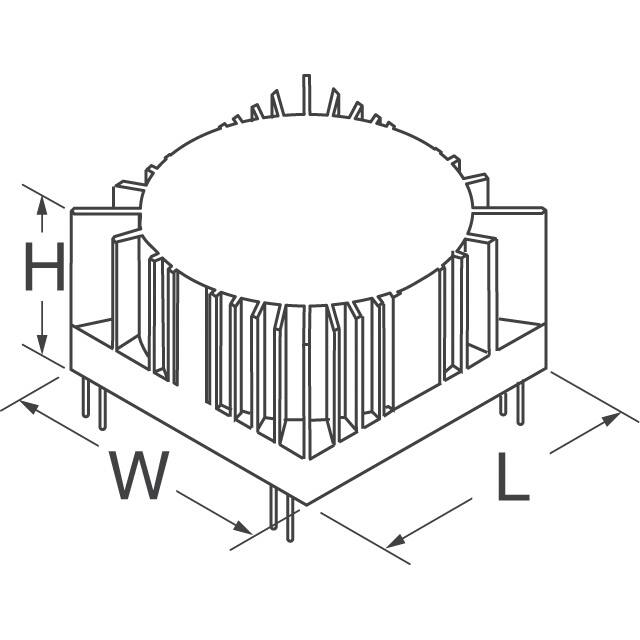

| Size / Dimension | 36.60mm L x 39.60mm W |
| Other | |
| Center Tap | No |
| Mfr | Acme Electric/Amveco/Actown |
| Primary Winding(s) | Dual |
| Product Status | Discontinued at Digi-Key |
| Secondary Winding(s) | Dual |
| Series | 70000 |
| Termination Style | PC Pin |
| Type | Toroidal |
| Weight | 0.157 lb (71.21 g) |
Documents
No documents are linked to this part yet.
