Micro Commercial CoUnited States

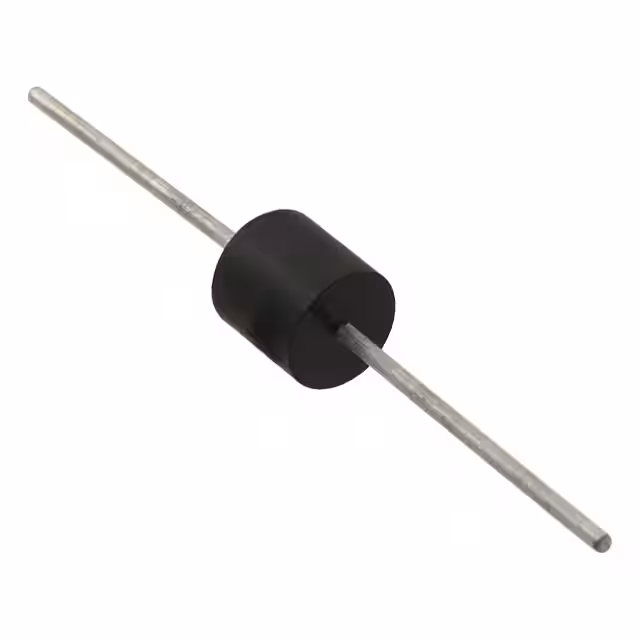

DIODE GEN PURP 1KV 6A R-6
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage1 kV
Average rectified current6 A
Forward voltage950 mVMax · 6 A
TypeStandardStandard Recovery >500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 6A |
| Current - Reverse Leakage @ Vr | 10 µA @ 1000 V |
| Voltage - DC Reverse (Vr) (Max) | 1000 V |
| Voltage - Forward (Vf) (Max) @ If | 950 mV @ 6 A |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature - Junction | -55°C~125°C |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Package / Case | R-6, Axial |
| Supplier Device Package | R-6 |
| Other | |
| Base Product Number | 6A10 |
| Capacitance @ Vr, F | - |
| Diode Type | Standard |
| Mfr | Micro Commercial Co |
| Product Status | Obsolete |
| Series | - |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
