Cornell Dubilier / Illinois CapacitorUnited States

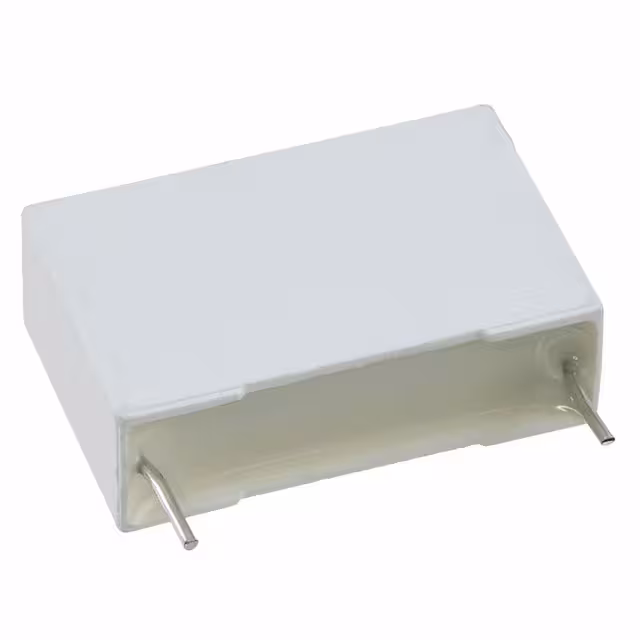

CAP FILM 0.068UF 10% 250VDC RAD
All alternatives
View full reportTechnical parameters
Key specs
Capacitance68 nF
Rated voltage250 V
Tolerance10 %
| Power | |
|---|---|
| Voltage Rating - AC | 160V |
| Voltage Rating - DC | 250V |
| Environment and package | |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~105°C |
| Package | Bulk |
| Package / Case | Radial |
| Size / Dimension | 0.709" L x 0.236" W (18.00mm x 6.00mm) |
| Other | |
| Applications | Commutation; High Pulse, DV/DT; Snubber |
| Capacitance | 0.068 µF |
| Dielectric Material | Polypropylene (PP), Metallized |
| Features | - |
| Lead Spacing | 0.591" (15.00mm) |
| Mfr | Cornell Dubilier / Illinois Capacitor |
| Product Status | Active |
| Ratings | - |
| Series | PPB |
| Termination | PC Pins |
| Tolerance | ±10% |
